Belimo NM24A-MP - rotary actuator for dampers

Belimo NM24A-MP - rotary actuator for dampers

Belimo
zł871.46
VAT included
zł708.50 tax excluded

Belimo NM24A-MP rotary actuator for dampers, with a torque of 10 Nm and AC/DC 24 V supply. It supports modulating control and MP-Bus communication.

Motor running time is 150 s / 90°, and the Y operating range and U feedback signal are 2...10 V.

Delivery in approx. 14 days
Share

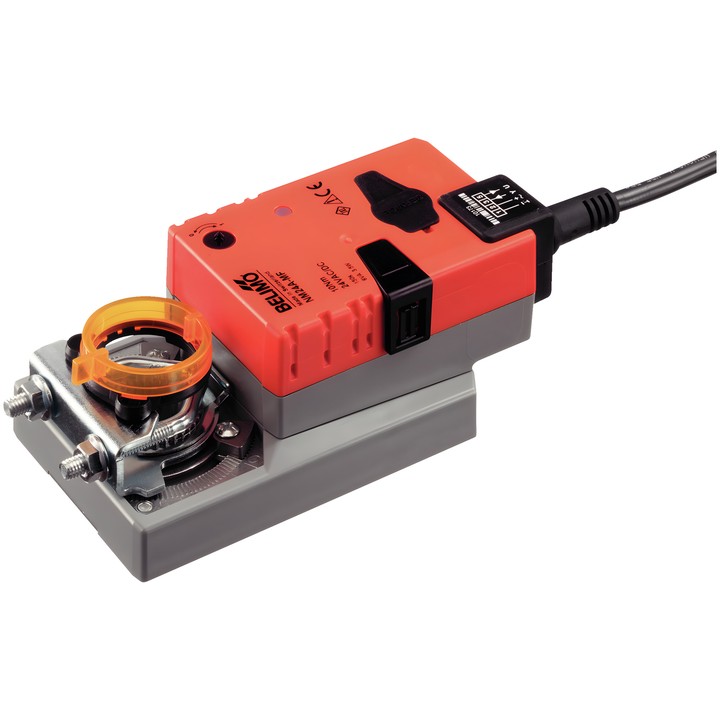

Belimo NM24A-MP

Communicating rotary actuator for positioning dampers in building services installations. The technical data sheet specifies a damper size of up to approx. 2 m².

Key features and parameters

  • Torque: 10 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Modulating control; Y operating range: 2...10 V; U feedback signal: 2...10 V.
  • MP-Bus communication; maximum of 8 MP-Bus nodes.
  • Motor running time: 150 s / 90°; adjustable running time: 43...173 s.
  • Rotation angle: max. 95°, with adjustable mechanical stops on both sides.
  • Direction of movement selected using a 0/1 switch; manual adjustment by push-button with locking option.
  • Universal shaft clamp 8...26.7 mm; power and control connection: 1 m cable, 4x 0.75 mm².
  • Power consumption during operation: 3.5 W; in idle position: 1.4 W; wire sizing power: 6 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

The actuator allows connection of a passive or active sensor, or a switching contact, and transmits its signal via MP-Bus to the higher-level system.

  • Brand
    Belimo
  • Reference
    NM24A-MP
  • EAN13
    7630498113123

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3.5 W
  • Power consumption (holding)
    1.4 W
  • Rated power
    6 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    MP-Bus DC 2...10 V DC 0.5...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    43...173 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm

Techniczna karta katalogowa

Download (2.01MB)

Instrukcja montażu

Download (536.23KB)

Techniczna karta katalogowa – NM24A-MP

Download (2.02MB)

EU Declaration of Conformity – NM24A-MP

Download (32.76KB)

Environmental Declaration – NM..

Download (72.37KB)
