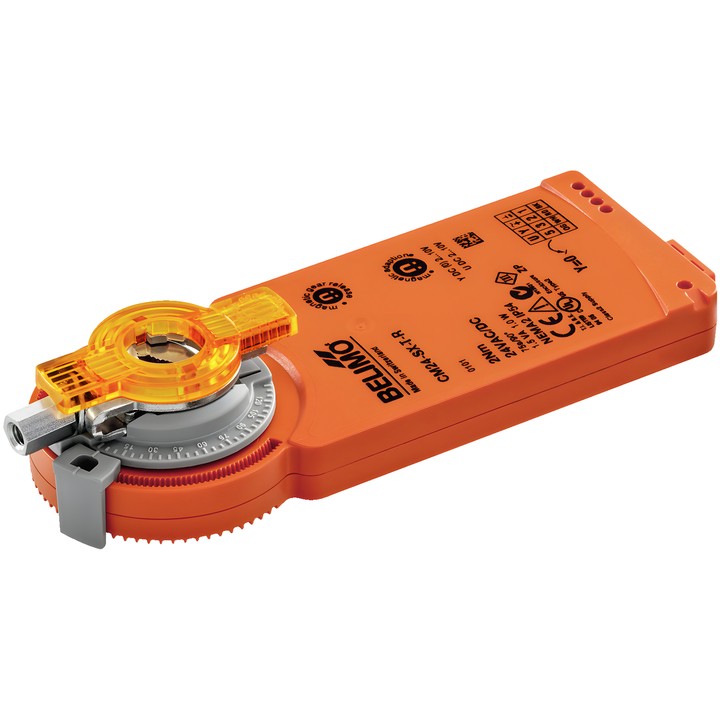

Belimo CM24-SX-T-R - rotary damper actuator

Name: Belimo CM24-SX-T-R - rotary damper actuator
Brand: Belimo
SKU: CM24-SX-T-R
Price: 1098.39 PLN
Availability: OutOfStock

Belimo

zł1,098.39

VAT included

zł893.00 tax excluded

Modulating rotary actuator for dampers in technical building systems. Torque 2 Nm, AC/DC 24 V power supply, 2...10 V control and 2...10 V position feedback signal. Running time is 75 s / 90°.

Mounts on the shaft using a universal clamp for 6...12.7 mm. The actuator has connection terminals, a mechanically adjustable rotation angle and an adaptation function.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo CM24-SX-T-R damper actuator

Modulating actuator for positioning dampers in technical building systems. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 0.4 m². The analogue control signal Y determines the actuator position, while the feedback signal U enables electrical readout of the damper position.

Key features and specifications

Torque: 2 Nm; nominal voltage: AC/DC 24 V, 50/60 Hz.
Y operating range: 2...10 V; U position feedback signal: 2...10 V.
Motor running time: 75 s / 90°; motor direction: clockwise (cw).
Rotation angle: 0...287.5°; adjustable using mechanical stops.
Manual adjustment and manual triggering of adaptation using a magnet; automatic adaptation when power is first switched on.
Universal shaft clamp for 6...12.7 mm and mechanical position indicator.
Power and control connection: terminals; solid copper wire 1,5 mm² or stranded wire 1,0 mm² (4-core).
Power consumption during operation: 1 W; at rest: 0.5 W; for cable sizing: 1.5 VA.
IEC/EN degree of protection: IP20; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -30...50°C [-22...122°F].

After manual adjustment, the technical data sheet requires adaptation to be triggered with a magnet at the designated location.

Brand

Belimo
Reference

CM24-SX-T-R

AC/DC voltage

AC/DC 24 V
Power consumption (running)

1 W
Power consumption (holding)

0.5 W
Rated power

1.5 VA
Power supply control connection

Terminals Solid copper wire 1,5 mm² or stranded 1,0 mm² (4-core)
Control type

DC 2...10 V
Protection rating

IP20
NEMA protection rating

NEMA 1
Enclosure type

UL Enclosure Type 1
Manual override

Using a magnet
Running time (motor)

75 s / 90°
Ambient temperature

-30...50°C [-22...122°F]
Torque

2 Nm
Direction of movement - motor

clockwise rotation (cw)
Rotational angle

0...287.5°
Mechanical connection

Universal clamp 6...12.7 mm
