Belimo NMQ24A-MF - damper actuator

Belimo NMQ24A-MF - damper actuator

Belimo
zł1,268.56
VAT included
zł1,031.35 tax excluded

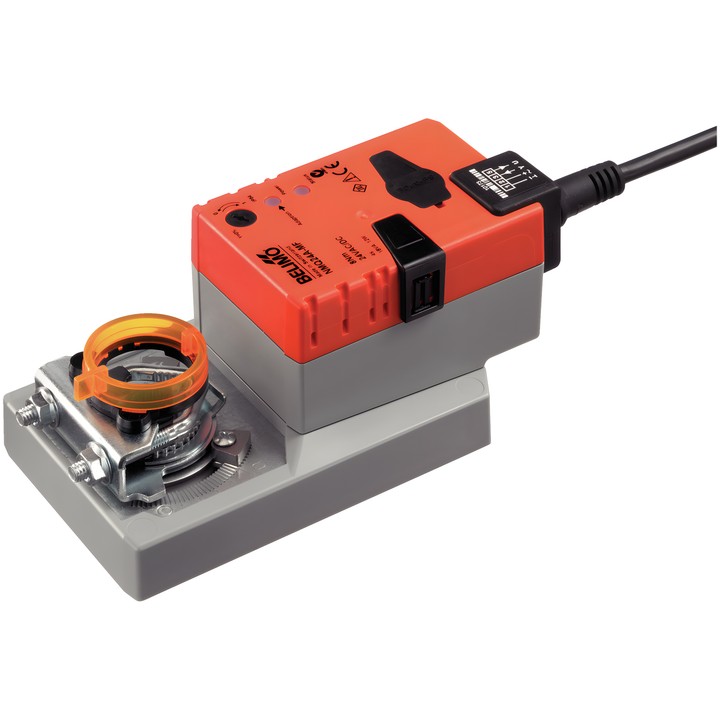

Configurable Belimo NMQ24A-MF damper actuator with AC/DC 24 V supply, 8 Nm torque and DC 2...10 V analogue control. The motor running time is 4 s / 90° and can be set within the range 4...20 s.

Delivery in approx. 14 days
Share

Belimo NMQ24A-MF is a configurable actuator for regulating dampers in technical building systems. It is designed for air dampers with an area of up to approx. 1.5 m². The Y control signal determines the actuator position, while the U feedback signal enables electrical position readout.

Key features

  • Torque: 8 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
  • Operating range Y: 2...10 V; feedback signal U: 2...10 V.
  • Motor running time: 4 s / 90°; adjustable running time: 4...20 s.
  • Rotation angle: max. 95°, with mechanical end stops on both sides; minimum permitted rotation angle: 30°.
  • Direction of movement selected by 0/1 switch; manual adjustment by push-button with locking option.
  • Universal shaft clamp for 8...26.7 mm and mechanical position indicator.
  • Power and control connection: 1 m cable, 4x 0.75 mm².
  • Power consumption during operation: 13 W; at rest: 2 W; sizing power: 23 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

Selected parameters can be changed using Belimo Assistant 2 or ZTH EU. Range adaptation takes place when the power is first switched on; it can also be started manually.

  • Brand
    Belimo
  • Reference
    NMQ24A-MF
  • EAN13
    7630498113284

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    13 W
  • Power consumption (holding)
    2 W
  • Rated power
    23 VA
  • Power supply control connection
    Cable 1 m, 4x 0.75 mm²
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    4 s / 90°
  • Variable motor running time
    4...20 s
  • Ambient temperature
    -30...40°C [-22...104°F]
  • Torque
    8 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...26.7 mm

Techniczna karta katalogowa

Download (1.83MB)

Instrukcja montażu

Download (437.78KB)

EU Declaration of Conformity – NMQ24A-MF

Download (32.73KB)

Environmental Declaration – NMQ..

Download (72.35KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
