Belimo SM24A-R9 - rotary actuator for dampers

Belimo SM24A-R9 - rotary actuator for dampers

Belimo
zł1,599.46
VAT included
zł1,300.37 tax excluded

Rotary actuator for controlling dampers in building services systems. Torque 20 Nm, AC/DC 24 V supply and 0...135 Ω control. Designed for air dampers with an area of up to approx. 4 m².

Features a 2...10 V position feedback signal, push-button manual override and a reversible universal mounting clamp 10...20 mm.

Delivery in approx. 14 days
Share

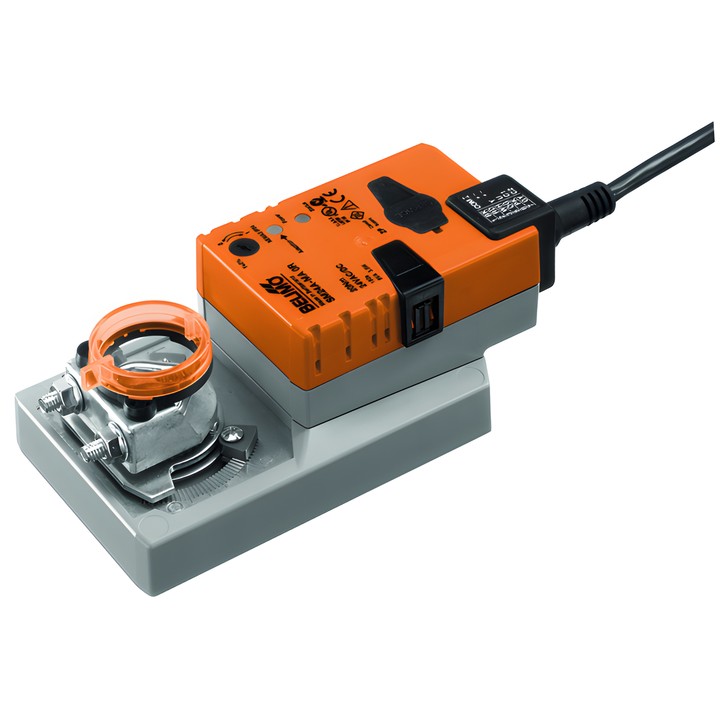

Belimo SM24A-R9 – rotary actuator for dampers

Actuator for controlling dampers in building services systems. The 0...135 Ω control signal determines the actuator position, while the 2...10 V feedback voltage enables electrical indication of the damper position.

Key features and specifications

  • Torque: 20 Nm; air damper area: up to approx. 4 m².
  • Rated voltage: AC/DC 24 V; voltage range: AC 19.2...28.8 V / DC 21.6...28.8 V.
  • Control: 0...135 Ω; position feedback signal: 2...10 V.
  • Motor running time: 150 s / 90°; running time can be set within the range 90...350 s.
  • Rotation angle: max. 95°, with the option of limiting movement on both sides using mechanical stops.
  • Direction of movement selected by 0/1 switch; manual override by push-button, with the option to lock.
  • Mechanical connection: reversible universal mounting clamp 10...20 mm; power and control cable: 1 m, 5x 0.75 mm².
  • Degree of protection: IP54; ambient temperature: -30...50°C [-22...122°F].

The actuator can be configured using Belimo MFT-P or ZTH EU service tools. Parallel operation is possible, taking power consumption data into account.

  • Brand
    Belimo
  • Reference
    SM24A-R9

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (holding)
    1.25 W
  • Rated power
    6 VA
  • Power supply control connection
    Cable 1 m, 5x 0.75 mm²
  • Control type
    0...135 Ω
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Variable motor running time
    90...350 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    20 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 10...20 mm

EU Declaration of Conformity – SM24A-R9

Download (32.47KB)

Environmental Declaration – SM..

Download (72.47KB)

Technical data sheet – SM24A-R9

Download (594.96KB)
