Belimo CM24-T-R - damper actuator

Belimo CM24-T-R - damper actuator

Belimo
zł364.70
VAT included
zł296.50 tax excluded

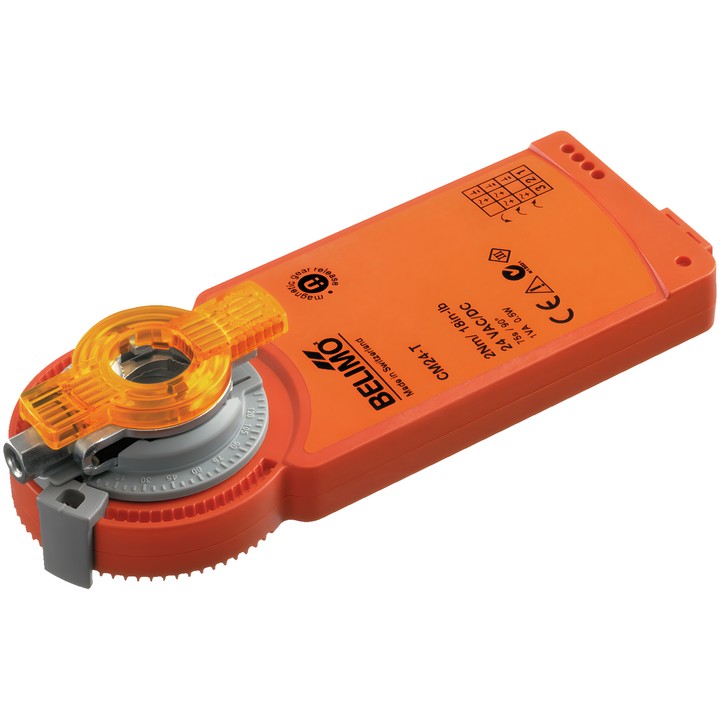

Rotary actuator for dampers in technical building systems. Torque 2 Nm, AC/DC 24 V supply, Close/Open or 3-point control, and running time 75 s / 90°.

Equipped with connection terminals and a universal shaft clamp 6...12.7 mm. Degree of protection IP20.

Delivery in approx. 14 days
Share

Belimo CM24-T-R damper actuator

Actuator designed to position dampers in technical building systems. The technical data sheet specifies a damper size of up to approx. 0.4 m².

Key features and specifications

  • Torque: 2 Nm.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Control: Close/Open, 3-point.
  • Motor running time: 75 s / 90°; direction of rotation: clockwise (cw).
  • Angle of rotation: 0...287.5°; angle adjustment using mechanical end stops.
  • Manual adjustment using a magnet; mechanical position indicator.
  • Mechanical connection: universal clamp 6...12.7 mm.
  • Power and control connection: terminals, solid copper wire 1,5 mm² or stranded wire 1,0 mm² (3-core).
  • Power consumption during movement: 0.5 W; at rest: 0.2 W; for wire sizing: 1 VA.
  • Degree of protection IEC/EN: IP20; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

The actuator is protected against overload and stops automatically when the end position is reached. The Z-ARCM anti-rotation clip is included with the product.

  • Brand
    Belimo
  • Reference
    CM24-T-R
  • EAN13
    7630498119354

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    0.5 W
  • Power consumption (holding)
    0.2 W
  • Rated power
    1 VA
  • Power supply control connection
    Terminals Solid copper wire 1,5 mm² or stranded 1,0 mm² (3-core)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP20
  • NEMA protection rating
    NEMA 1
  • Enclosure type
    UL Enclosure Type 1
  • Manual override
    Using a magnet
  • Running time (motor)
    75 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    2 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    0...287.5°
  • Mechanical connection
    Universal clamp 6...12.7 mm

Techniczna karta katalogowa

Download (1.22MB)

Instrukcja montażu

Download (578.08KB)

EU Declaration of Conformity – CM24-T-R

Download (32.71KB)

Environmental Declaration – CM..

Download (72.45KB)
