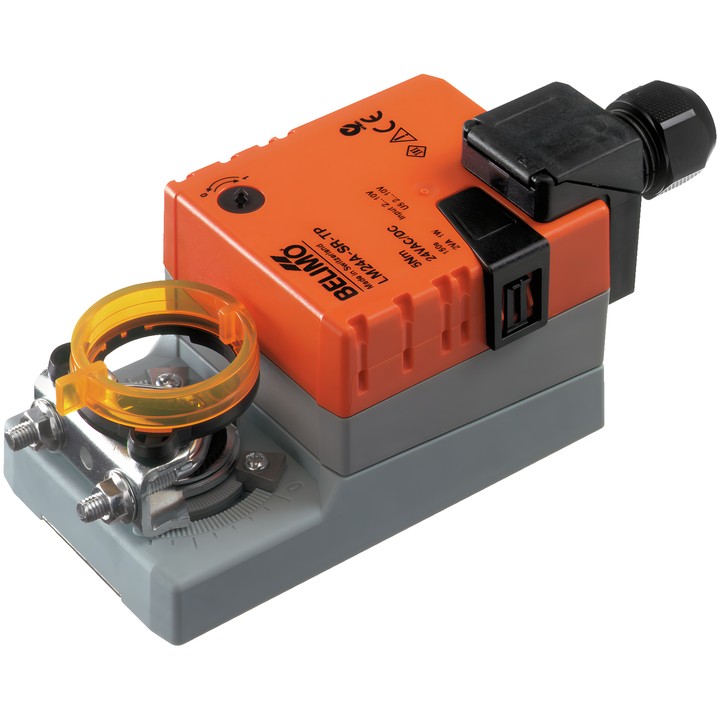

Belimo LM24A-SR-TP rotary actuator for dampers with a torque of 5 Nm, AC/DC 24 V supply and 2...10 V modulating control. The running time is 150 s / 90°, and the feedback signal is 2...10 V.

Equipped with a 6...20 mm universal clamp, connection terminals and manual adjustment by push-button with the option to lock it.

Delivery in approx. 14 days
Share

Belimo LM24A-SR-TP – actuator for dampers

Modulating actuator designed to control dampers in building services installations. According to the technical data sheet, it is intended for air dampers with an area of up to approx. 1 m².

Key features and parameters

  • Torque: 5 Nm.
  • Rated voltage: AC/DC 24 V; rated voltage frequency: 50/60 Hz.
  • Operating range of control signal Y: 2...10 V; position feedback U: 2...10 V.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°.
  • Direction of movement selected by 0/1 switch; mechanical stops allow the rotation angle to be limited on both sides.
  • Manual adjustment by push-button with the option to lock it, and a mechanical position indicator.
  • 6...20 mm universal clamp for mounting on the damper shaft.
  • Power and control connection: 4 mm² terminals (ø4...10 mm cable, 4-core).
  • Power consumption during operation: 1 W; at rest: 0.4 W; for cable sizing: 2 VA.
  • IEC/EN degree of protection: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    LM24A-SR-TP
  • EAN13
    7630498112331

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    1 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    2 VA
  • Power supply control connection
    4 mm² terminals (ø4...10 mm cable, 4-core)
  • Control type
    DC 2...10 V
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (1.85MB)

Instrukcja montażu

Download (203.36KB)

EU Declaration of Conformity – LM24A-SR-TP

Download (32.8KB)

Environmental Declaration – LM..

Download (72.46KB)
