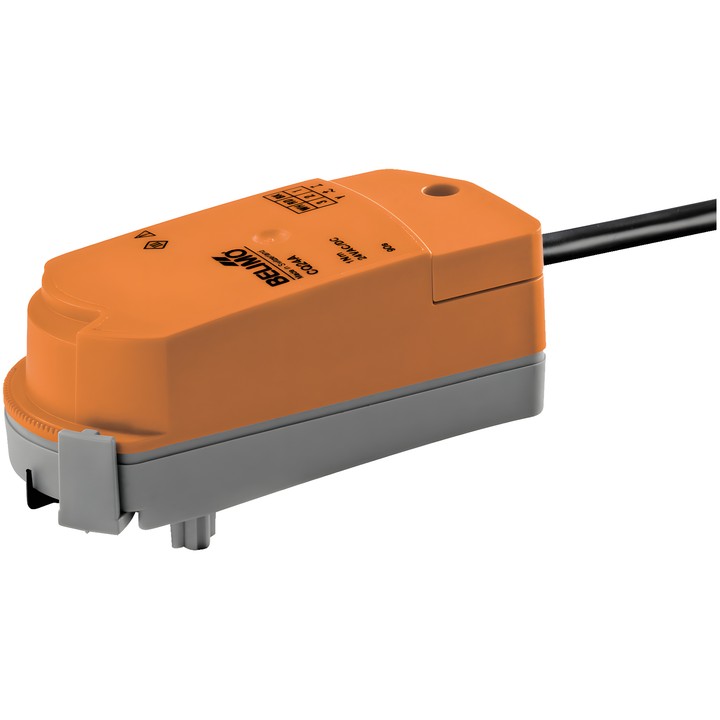

Belimo CQC230A - rotary actuator for zone valves

Name: Belimo CQC230A - rotary actuator for zone valves
Brand: Belimo
SKU: CQC230A
Price: 354.57 PLN
Availability: BackOrder

Belimo

zł354.57

VAT included

zł288.27 tax excluded

Belimo CQC230A rotary actuator for zone valves. Torque 1 Nm, power supply AC 100...240 V, Open/Close or 3-point control, and running time 35 s / 90°.

Tool-free snap-on installation, adjustable rotation angle and IP40 protection rating.

Delivery in approx. 14 days

Belimo CQC230A – actuator for zone valves

Electronic rotary actuator with snap-on installation. The rotation angle is adjusted using a clip in steps of 2.5° to set the valve's maximum flow rate. Manual operation requires removing the actuator and turning the valve stem using the actuator.

Key technical data

Torque: 1 Nm; running time: 35 s / 90°.
Rated voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Open/Close, 3-point.
Power consumption during operation: 1 W; at rest: 0.7 W; sizing power for cable selection: 2 VA.
Power and control connection: 1 m cable, 3x 0.75 mm².
Position indicator and mechanical rotation angle limitation.
Degree of protection IEC/EN: IP40; protection class IEC/EN: II, reinforced insulation.
Ambient temperature: 5...40°C.

The actuator has overload protection and stops automatically when it reaches the stop. Other actuators can operate in parallel, taking their power consumption data into account.
