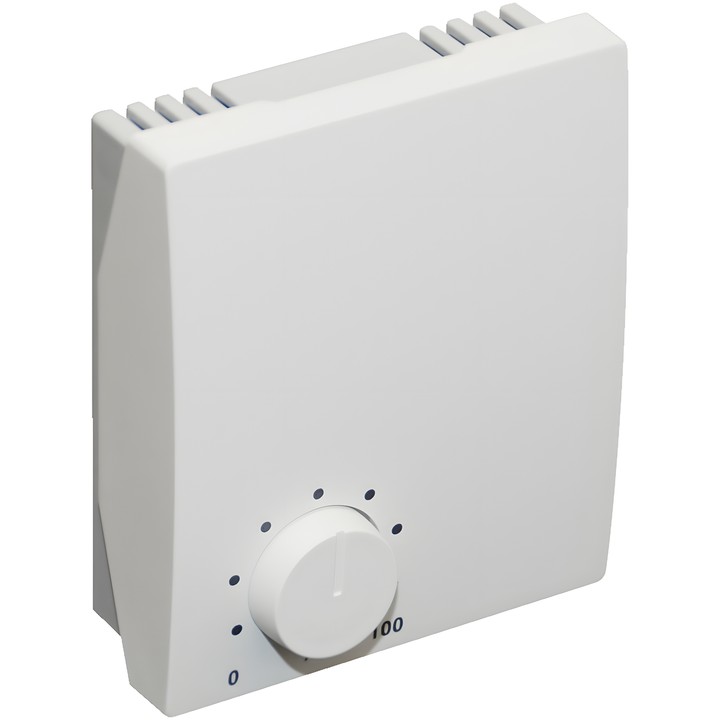

Belimo CRP24-B1 - wall-mounted positioner

Belimo CRP24-B1 – positioner for damper actuators

Wall-mounted positioner for controlling modulating damper actuators CM24-SR, ..M24A-SR or ..M230ASR. It can also operate as a minimum-positioner or work with temperature controllers to shift the setpoint.

Key features and technical data

• Adjustment by knob: 0...100%.
• Control signal Y: DC 0...10 V or DC 2...10 V, max. 1 mA; range selected by a switch beneath the front cover.
• Nominal voltage: AC 24V 50/60 Hz / DC 24V; supply range: AC/DC 19.2 … 28.8V.
• Power consumption for power supply sizing: 0.7 VA, excluding actuators.
• Input: 1 digital, contact rating 10 mA; output: 1 analogue.
• Communication connection for service devices: 2 x PP (including PC-Tool, ZTH-GEN).
• Connections: screw terminals, max. 1.5 mm2.
• Protection class III; degree of protection IP30 (EN 60529).
• Operating conditions: 0 … +50°C / 20 … 90% r.h. (non-condensing).
• Dimensions (H x W x D): 99 x 84 x 32 mm; weight: 105 g.
