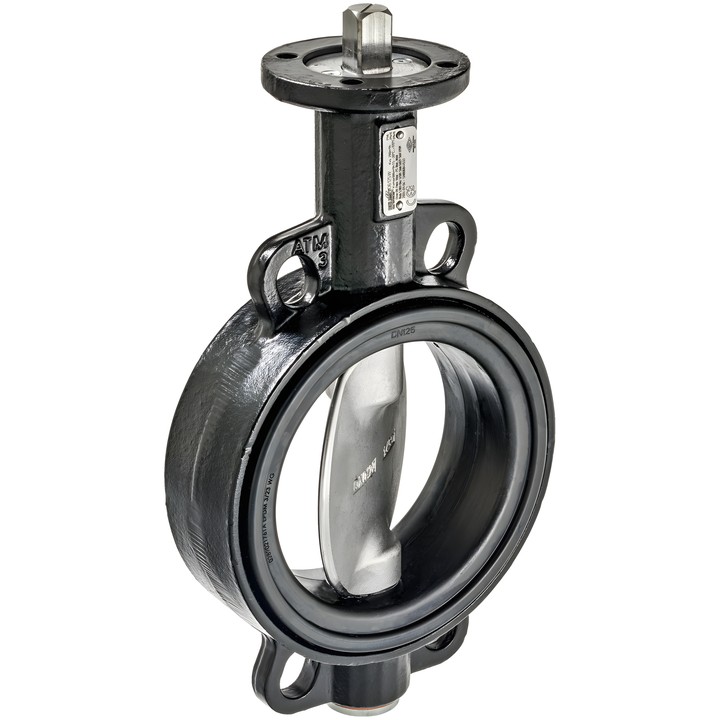

Belimo D6150W - DN 150 2-way butterfly valve

Name: Belimo D6150W - DN 150 2-way butterfly valve
Brand: Belimo
SKU: D6150W
Price: 1661.21 PLN
Availability: BackOrder

Belimo

zł1,661.21

VAT included

zł1,350.58 tax excluded

Belimo D6150W is a DN 150 2-way butterfly valve with PN 6 / 10 / 16 flange connection. Flow parameters: Kvs 550 m³/h and Kvmax 1780 m³/h.

Designed for water and water with a maximum of 50% by volume glycol; fluid temperature -20...120°C [-4...248°F].

Delivery in approx. 14 days

Belimo D6150W – DN 150 butterfly valve

2-way wafer-type butterfly valve for open and closed water systems. According to the documentation, it can be used to switch heat generators or cooling equipment on and off.

Key features and parameters

DN 150; PN 6 / 10 / 16; pipe connection: flange.
Kvs 550 m³/h; Kvmax 1780 m³/h.
Medium: water, water with a maximum of 50% by volume glycol.
Fluid temperature: -20...120°C [-4...248°F].
Differential pressure: ∆pmax 300 kPa; ps 1600 kPa.
Permissible leakage: tightness class A (EN 12266-1).
Angle of rotation: 90°.
Body: EN-GJS-400-18-LT (GGG 40.3); disc: stainless steel 1.4581; seat: EPDM.

Permissible installation position: from vertical to horizontal relative to the stem. Installation with the stem pointing downwards is not permitted.

Brand

Belimo
Reference

D6150W
EAN13

7630498102561

Kvs

550 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

-20...120°C [-4...248°F]
Differential pressure

∆pmax 300 kPa
Flow characteristic

0...100%: equal percentage / linear; 0...60%: equal percentage
Permissible leakage

Bubble-tight, leakage rate A
Pipe connection

Flange
