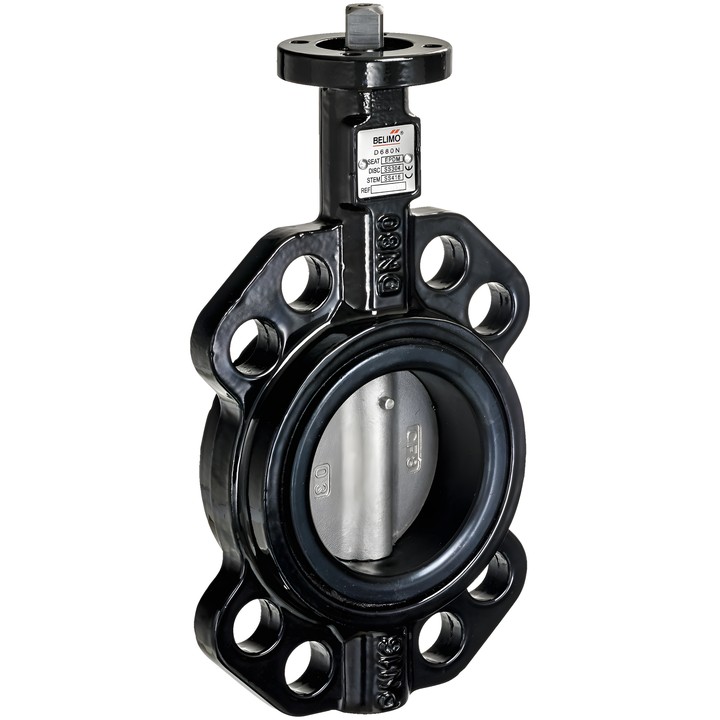

Belimo D632N - 2-way butterfly valve DN 32

Name: Belimo D632N - 2-way butterfly valve DN 32
Brand: Belimo
SKU: D632N
Price: 452.20 PLN
Availability: BackOrder

Belimo

zł452.20

VAT included

zł367.64 tax excluded

Belimo D632N butterfly valve, 2-way, DN 32, with PN 6 / 10 / 16 flanged connection. Kvs 25 m³/h, Kvmax 55 m³/h.

Suitable for water and water with a maximum of 50% vol. glycol. Fluid temperature: -20...120°C [-4...248°F].

Delivery in approx. 14 days

Belimo D632N – butterfly valve DN 32

2-way butterfly valve for open and closed water systems, intended, among other uses, for switching heat generators or refrigeration equipment on and off. According to the documentation, the valve is intended for stationary heating, ventilation and air-conditioning systems.

Key specifications

Nominal diameter: DN 32; PN 6 / 10 / 16 flanged connection.
Kvs: 25 m³/h; Kvmax: 55 m³/h.
Fluid: water, water with a maximum of 50% vol. glycol.
Fluid temperature: -20...120°C [-4...248°F].
Maximum differential pressure ∆pmax for DN 32: 300 kPa.
Flow characteristic: 0...60% opening angle – equal percentage; 0...100% opening angle – S-shaped.
Rotation angle: 90°; leakage rate A (EN 12266-1).
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: Stainless steel AISI 304 (1.4301); seat: EPDM.

Installation is permitted from the vertical to the horizontal position relative to the stem. Do not install the valve with the stem pointing downwards.
