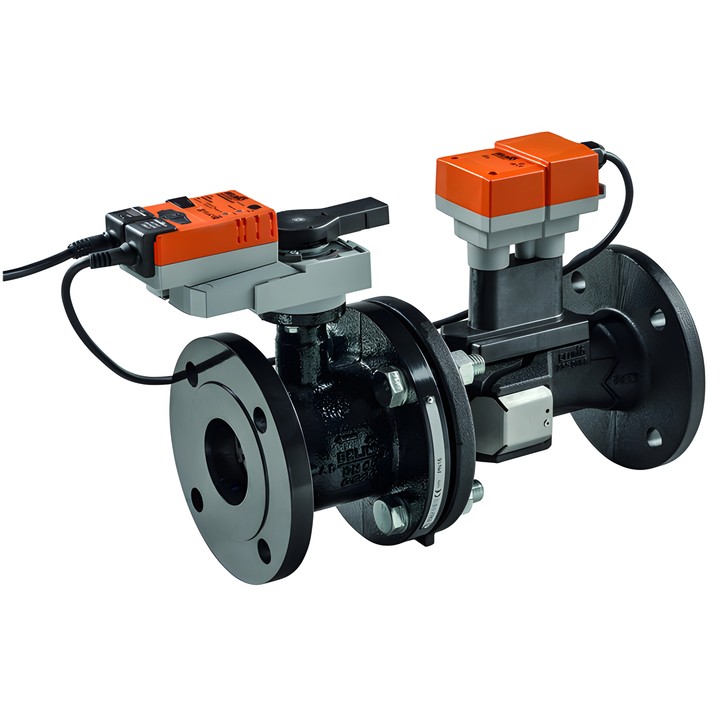

Belimo EP080F+MP - 2-way EPIV regulating ball valve

Belimo EP080F+MP – DN 80 EPIV valve

2-way regulating ball valve with measuring tube and actuator. Ultrasonic flow measurement enables electronic flow control independent of pressure changes. The device is designed for closed-loop water systems, including air handling unit circuits and heating systems.

Key technical data

• Type: EP080F+MP; DN 80; PN 16 flange connection.
• V'nom: 11 l/s (660 l/min; 39.6 m³/h); adjustable V'max: 30...100% V'nom.
• Rated voltage: AC/DC 24 V; power consumption during operation: 6 W.
• Communication: MP-Bus; operating range Y: 2...10 V; feedback signal U: 2...10 V.
• Medium: water, water with max. 50% vol. glycol; medium temperature: -10...120°C [14...248°F].
• Pressure differential: ∆pmax 340 kPa; closing pressure: ∆ps 690 kPa.
• Flow characteristic: equal percentage (VDI/VDE 2173), with option to switch to linear.
• Permissible leakage: bubble-tight, leakage rate A (EN 12266-1).
• IEC/EN enclosure protection rating: IP54.

The valve can be installed with the spindle in any position from vertical to horizontal; installation with the axis pointing downwards is not permitted. The flow direction must match the arrow on the housing. A straight inlet section of at least 5 x DN is required upstream of the flow sensor.
