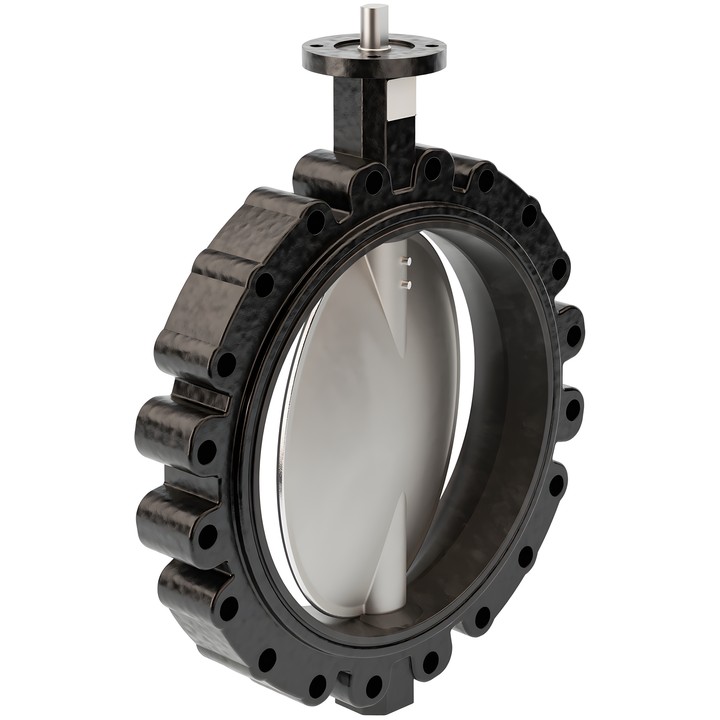

Belimo D6400NL - DN 400 2-way butterfly valve

Name: Belimo D6400NL - DN 400 2-way butterfly valve
Brand: Belimo
SKU: D6400NL
Price: 11351.74 PLN
Availability: BackOrder

Belimo

zł11,351.74

VAT included

zł9,229.06 tax excluded

Belimo D6400NL is a DN 400 2-way butterfly valve, PN 16, with threaded holes in the body. Kvs is 4140 m³/h and Kvmax is 14200 m³/h.

For water and water with a maximum of 50% vol. glycol. Fluid temperature: -20...120°C [-4...248°F].

Delivery in approx. 14 days

Belimo D6400NL butterfly valve

2-way butterfly valve with threaded holes in the body, designed for open and closed water systems. It can be used to switch heat generators or cooling units on and off.

Key features

Nominal diameter: DN 400; nominal pressure: PN 16.
Kvs: 4140 m³/h; Kvmax: 14200 m³/h.
Fluid: water, water with a maximum of 50% vol. glycol.
Fluid temperature: -20...120°C [-4...248°F].
Maximum differential pressure ∆pmax for DN 400: 300 kPa.
Flow characteristic: 0...60% opening angle — equal percentage; 0...100% opening angle — S-shaped.
Tightness: bubble-tight, leakage rate A (EN 12266-1).
Rotation angle: 90°; pipe connection: flange in accordance with ISO 7005-2 and EN 1092-2.
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: AISI 304 stainless steel (1.4301); seat: EPDM.

Installation is permitted from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Maximum shut-off pressure depends on the diameter and type of actuator installed.
