Belimo D6450N - 2-way butterfly valve DN 450

Name: Belimo D6450N - 2-way butterfly valve DN 450
Brand: Belimo
SKU: D6450N
Price: 17763.36 PLN
Availability: BackOrder

Belimo

zł17,763.36

VAT included

zł14,441.76 tax excluded

Belimo D6450N butterfly valve, 2-way, DN 450, PN 16, with flanged connection. Kvs 5490 m³/h and Kvmax 18800 m³/h.

Designed for water and water with up to 50% by volume glycol; medium temperature -20...120°C [-4...248°F].

Delivery in approx. 14 days

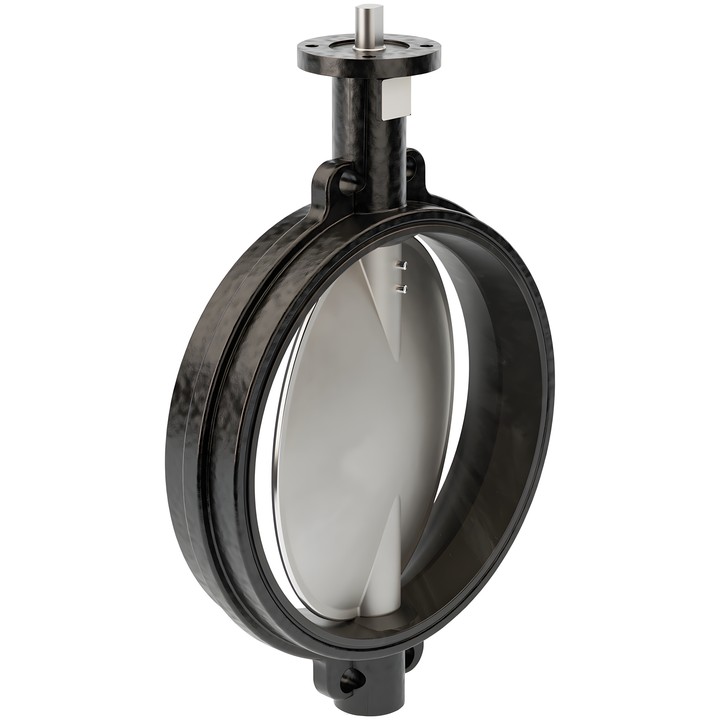

Belimo D6450N – butterfly valve DN 450

Wafer-type butterfly valve for open and closed water systems. According to the documentation, it can be used to switch heat sources or cooling equipment on and off.

Key specifications

Design: 2-way, DN 450, PN 16; pipe connection: flange.
Kvs: 5490 m³/h; Kvmax: 18800 m³/h.
Medium: water, water with up to 50% by volume glycol.
Medium temperature: -20...120°C [-4...248°F].
Maximum differential pressure ∆pmax for DN 450: 300 kPa.
Flow characteristic: 0...60% opening angle – equal percentage; 0...100% opening angle – S-shaped.
Leakage rate: tightness A (EN 12266-1).
Rotation angle: 90°.
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: stainless steel AISI 304 (1.4301); seat: EPDM.

Permitted mounting position: from vertical to horizontal relative to the stem. Do not install with the stem pointing downwards.
