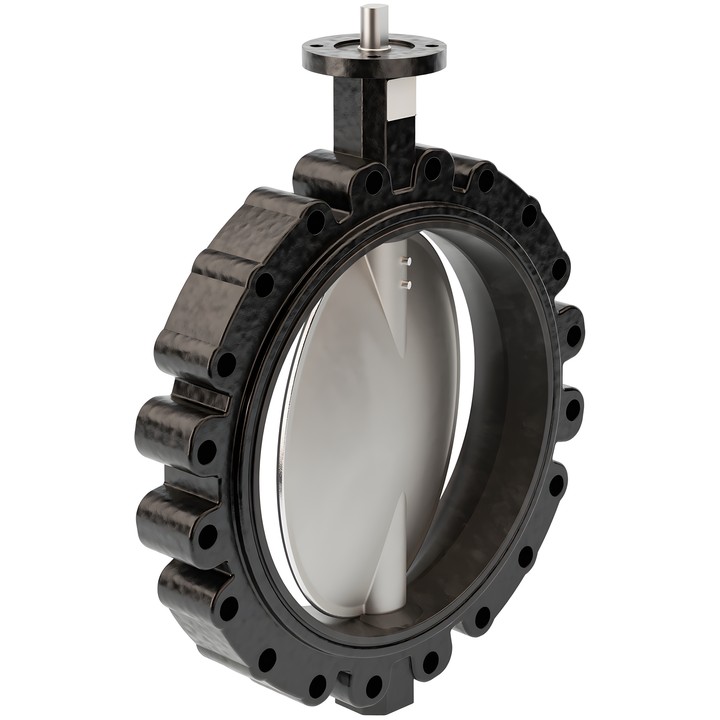

Belimo D6600NL - 2-way butterfly valve DN 600

Name: Belimo D6600NL - 2-way butterfly valve DN 600
Brand: Belimo
SKU: D6600NL
Price: 48338.67 PLN
Availability: BackOrder

Belimo

zł48,338.67

VAT included

zł39,299.73 tax excluded

Belimo D6600NL is a 2-way butterfly valve DN 600, PN 16, with threaded holes in the body and a flange connection. Kvs is 10900 m³/h and Kvmax is 37300 m³/h.

Suitable for water and water with a maximum of 50% by volume glycol. Medium temperature: -20...120°C [-4...248°F].

Delivery in approx. 14 days

Belimo D6600NL butterfly valve

2-way butterfly valve DN 600 for open and closed water systems. Body with threaded holes, flange connection.

Key specifications

DN 600, PN 16; ps 1600 kPa.
Kvs: 10900 m³/h; Kvmax: 37300 m³/h.
Medium: water, water with a maximum of 50% by volume glycol.
Medium temperature: -20...120°C [-4...248°F].
Maximum differential pressure ∆pmax for DN 600: 300 kPa.
Flow characteristic: 0...60% opening angle — equal percentage; 0...100% opening angle — S-shaped.
Tightness: bubble-tight, leakage rate A (EN 12266-1).
Rotation angle: 90°.
Body: EN-GJS-400-18-LT (GGG 40.3); closure element: stainless steel AISI 304 (1.4301); stem for DN 600: stainless steel AISI 630 (1.4542); seat: EPDM.

Permitted installation position: from vertical to horizontal relative to the stem. Do not install with the stem pointing downwards.
