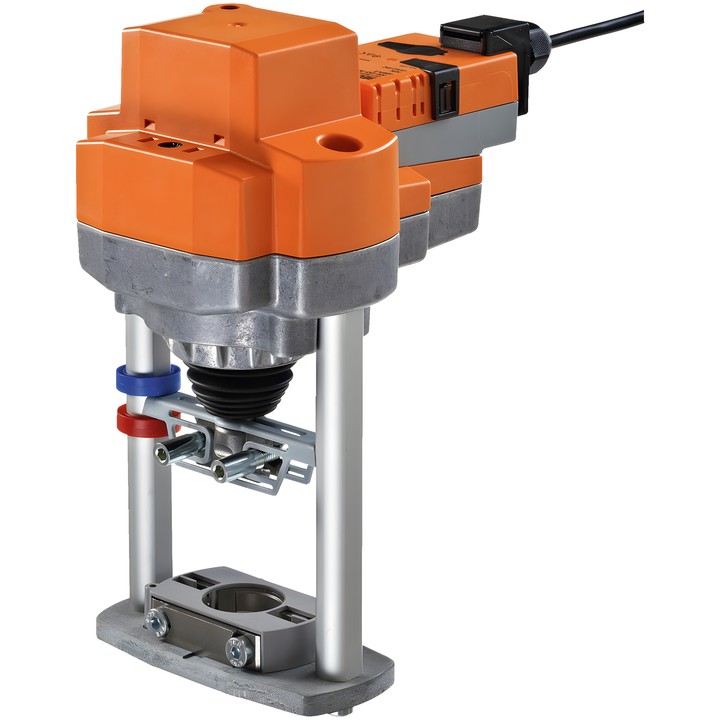

Belimo EV24A-MP-TPC - actuator for globe valves

Belimo EV24A-MP-TPC

Actuator for 2-way and 3-way globe valves, designed for stationary heating, ventilation and air conditioning installations. It can operate with an analogue control signal or receive a digital signal via MP-Bus.

Key features

• Actuator force: 2500 N; stroke: 40 mm.
• Power supply: AC/DC 24 V, 50/60 Hz.
• Modulating control: operating range Y 2...10 V; position feedback signal U 2...10 V.
• MP-Bus communication; max. 8 MP-Bus nodes.
• Travel time: 150 s / 40 mm; adjustable travel time: 90...150 s.
• Connection for a passive or active sensor, or a switching contact, with its signal transmitted via MP-Bus.
• Manual adjustment using a push-button, with the option to lock it.
• Setpoint range adaptation: manual, automatic on first power-up.
• Power consumption during operation: 4 W; in standby position: 1.5 W; for cable sizing: 6 VA.
• Power and control connection: terminals with 1 m cable, 4x 0.75 mm², 4 mm² terminal.
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).
