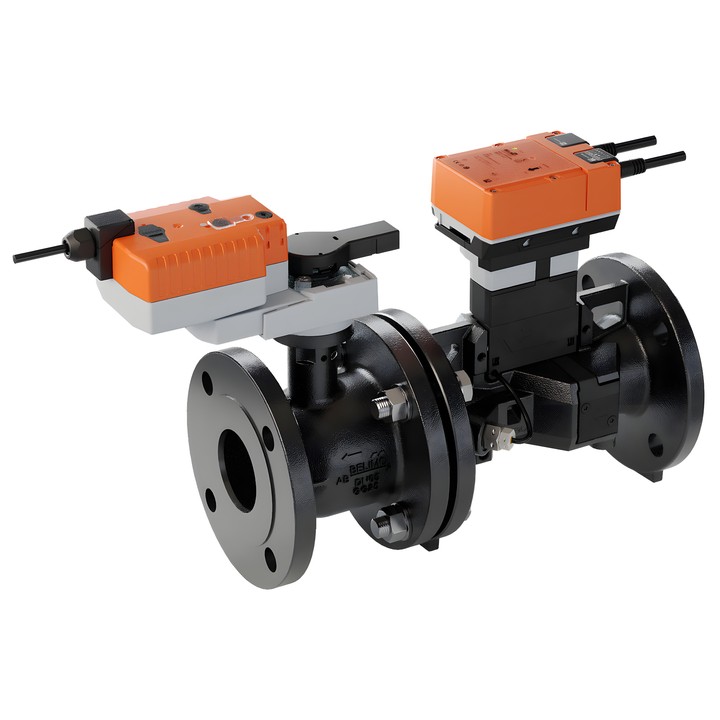

Belimo EP100F2-16+KBAC – EPIV control valve

2-way control valve with sensor-based flow measurement and control. The system is designed for closed water systems and water-side control in ventilation and heating systems. In the event of a power failure, the actuator moves the valve to the selected safety position using energy stored in capacitors.

Key features and specifications

• DN 100, PN 16; flanged connection in accordance with EN 1092-2.
• V'nom 20.8 l/s (75 m³/h); V'max adjustable from 25...100% V'nom.
• Fluid: water or water with max. 60% vol. glycol; fluid temperature -10...120°C [14...248°F].
• Maximum differential pressure ∆pmax 350 kPa; closing pressure ∆ps 690 kPa.
• AC/DC 24 V power supply; power consumption during operation 12.1 W, in standby position 4.1 W.
• Control signal Y: 2...10 V; BACnet MS/TP, Modbus RTU and MP-Bus communication. Modulating, communicative and hybrid control available.
• Ultrasonic flow measurement and fluid temperature measurement; glycol concentration monitoring in the range 0...60%.
• Safety function: NC/NO position or adjustable 0...100%; repositioning time 35 s / 90°.
• NFC interface for configuration and operation using Belimo Assistant 2; manual adjustment by button.
• IEC/EN IP54 protection rating; IEC/EN protection class III, Protective Extra-Low Voltage (PELV).

For fluid temperatures of -10...2°C, a valve neck extension is recommended. The permissible fluid temperature may depend on the actuator type.
