Belimo D6350N - 2-way butterfly valve DN 350

Name: Belimo D6350N - 2-way butterfly valve DN 350
Brand: Belimo
SKU: D6350N
Price: 6076.74 PLN
Availability: BackOrder

zł6,076.74

VAT included

zł4,940.44 tax excluded

Belimo D6350N is a 2-way butterfly valve DN 350 with PN 10 / 16 flanged connection. Flow parameters: Kvs 3010 m³/h and Kvmax 10300 m³/h.

Designed for water and water with a maximum of 50% by volume glycol; fluid temperature -20...120°C [-4...248°F].

Delivery in approx. 14 days

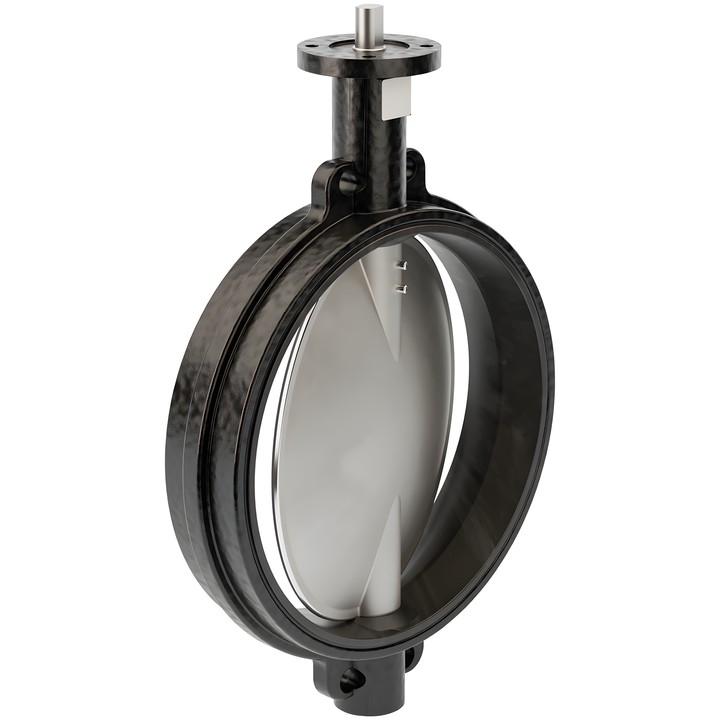

Belimo D6350N butterfly valve

2-way butterfly valve for open and closed water systems, including switching heat sources or cooling units on and off.

DN 350; PN 10 / 16 flanged connection.
Kvs 3010 m³/h; Kvmax 10300 m³/h.
Fluid: water, water with a maximum of 50% by volume glycol.
Fluid temperature: -20...120°C [-4...248°F].
Maximum differential pressure ∆pmax: 300 kPa.
Flow characteristic: 0...60% opening angle – equal percentage; 0...100% opening angle – S-shaped.
Leakage rate: rate A (EN 12266-1).
Rotational angle: 90°.
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: Stainless steel AISI 304 (1.4301); seat: EPDM.

Permitted installation position: from vertical to horizontal relative to the stem. Installation with the stem pointing downwards is not permitted.
