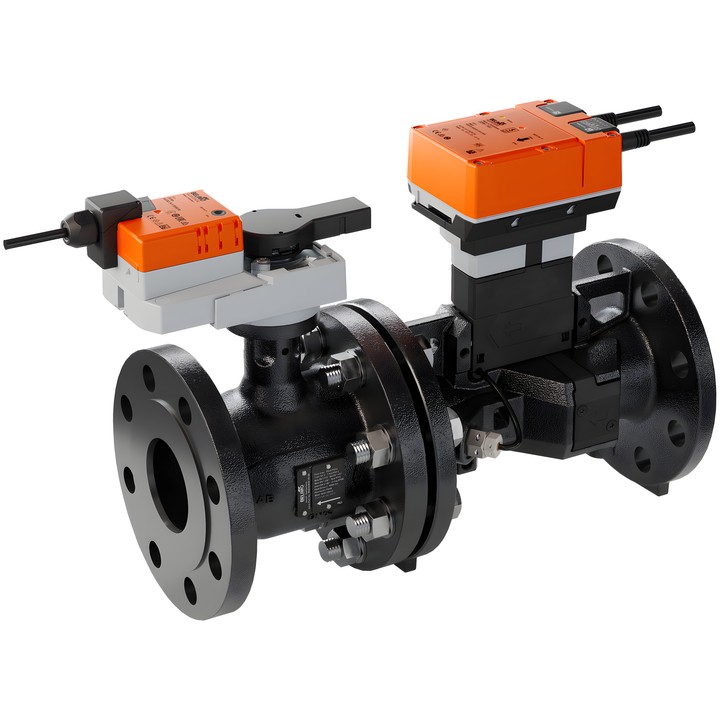

Belimo EP150F2-25+BAC - 2-way EPIV control valve

Name: Belimo EP150F2-25+BAC - 2-way EPIV control valve
Brand: Belimo
SKU: EP150F2-25+BAC
Price: 65689.38 PLN
Availability: OutOfStock

Belimo

zł65,689.38

VAT included

zł53,406.00 tax excluded

2-way EPIV control valve with electronic pressure-independent flow control. DN 150, PN 25 model with flanged connection and nominal flow V'nom 50.0 l/s (180 m³/h).

AC/DC 24 V supply; modulating and communication control via BACnet MS/TP, Modbus RTU or MP-Bus. The valve measures fluid flow and temperature and monitors glycol concentration.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EP150F2-25+BAC – EPIV control valve

2-way control valve with sensor-based pressure-independent flow control, designed for closed water systems and modulating control of the water side of ventilation and heating systems.

Key features and parameters

DN 150, PN 25; flanged connection.
V'nom 50.0 l/s (180 m³/h); V'max adjustable from 25...100% V'nom.
AC/DC 24 V supply; power consumption during operation 5.1 W, in standby position 2.6 W.
Modulating, communication and hybrid control; control signal Y 2...10 V; BACnet MS/TP, Modbus RTU and MP-Bus communication.
Measurement of fluid flow and temperature, and monitoring of glycol concentration.
Fluid: water or water with max. 60% vol. glycol; fluid temperature -10...110°C [14...230°F].
Maximum differential pressure ∆pmax 350 kPa; closing pressure ∆ps 690 kPa.
Equal-percentage flow characteristic; Class A tightness according to EN 12266-1.
Manual override using a push-button, with the option to lock it; NFC configuration using Belimo Assistant 2.
1 m connecting cable; IP54 protection rating.

At fluid temperatures of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may depend on the actuator type.

Brand

Belimo
Reference

EP150F2-25+BAC
EAN13

7630498136955

Medium

Water, water with max. 60% vol. glycol.
Pattern

2-way
Fluid temperature

-10...110°C [14...230°F]
Fluid temperature, note

At a fluid temperature of -10...2°C, extending the valve neck is recommended. The permissible fluid temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for limitations.
Differential pressure

∆pmax 350 kPa
Closing pressure

690 kPa
Differential pressure note

200 kPa for quiet operation
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

Flange
V'nom [l/s]

50.0
Adjustable flow rate

25...100% V'nom
