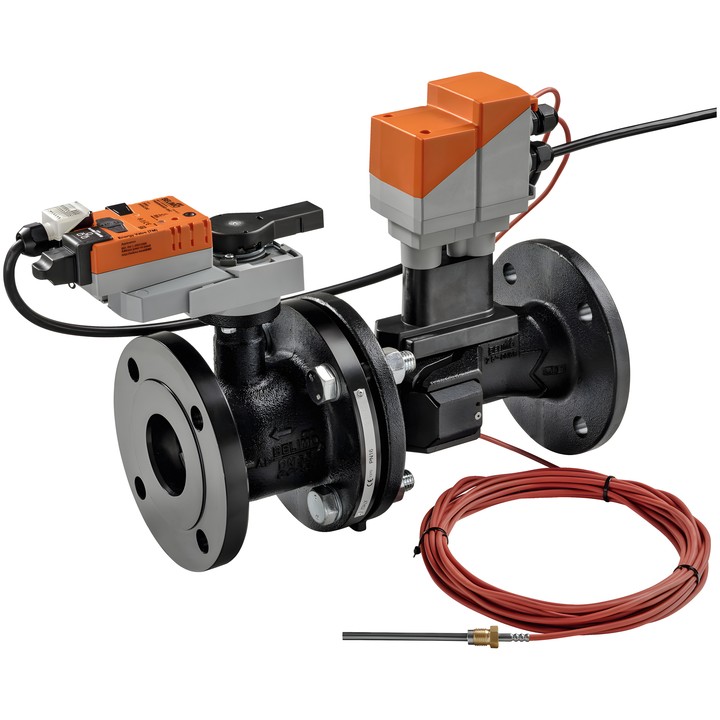

Belimo EV065F+BAC - 2-way Energy Valve control valve

Name: Belimo EV065F+BAC - 2-way Energy Valve control valve
Brand: Belimo
SKU: EV065F+BAC
Price: 15128.96 PLN
Availability: BackOrder

Belimo

zł15,128.96

VAT included

zł12,299.97 tax excluded

Belimo EV065F+BAC is a 2-way flanged Energy Valve control valve, DN 65, PN 16 and V'nom 8 l/s. It enables flow or power control based on sensor measurements, as well as power and energy monitoring.

AC/DC 24 V supply. Supports BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.

Delivery in approx. 14 days

Belimo EV065F+BAC – Energy Valve DN 65

A 2-way control valve with flow measurement, designed for closed water systems and modulating control of the water side of ventilation and heating systems. It enables flow or power control, power and energy monitoring, and glycol concentration monitoring.

Key features

Flanged connection, DN 65, PN 16; V'nom 8 l/s (28.8 m³/h).
V'max setting: 30...100% V'nom; maximum differential pressure ∆pmax 340 kPa.
Fluid: water or water with up to 50% vol. glycol; fluid temperature -10...120°C [14...248°F].
AC/DC 24 V supply; power consumption during operation 7 W, in rest position 5 W.
Control signal Y 2...10 V; communication via BACnet/IP, BACnet MS/TP, Modbus TCP, Modbus RTU, MP-Bus and Cloud.
Integrated Delta-T manager and data logging for 13 months.
Manual adjustment using a push button, with the option to lock it; IEC/EN IP40 protection rating.
