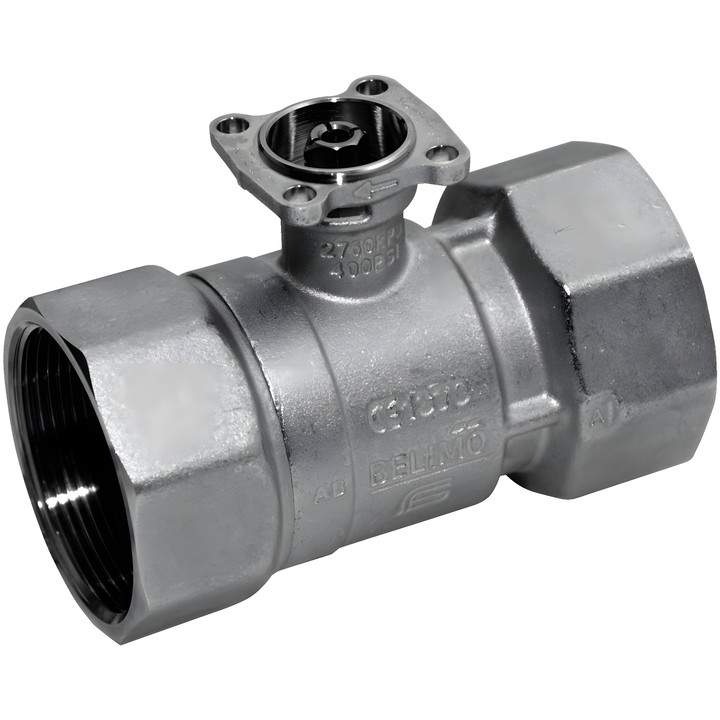

Belimo R2025-6P3-S2 - 2-way control valve with orifice

Name: Belimo R2025-6P3-S2 - 2-way control valve with orifice
Brand: Belimo
SKU: R2025-6P3-S2
Price: 381.89 PLN
Availability: BackOrder

Belimo

zł381.89

VAT included

zł310.48 tax excluded

Belimo R2025-6P3-S2 is a 2-way control valve with orifice, DN 25, PN 40, with Rp 1" female thread and Kvs 6.3 m³/h. Designed for water-side control in ventilation and heating systems.

Delivery in approx. 14 days

Belimo R2025-6P3-S2

2-way control valve with orifice for open and closed water systems. It can be used for water-side control in ventilation and heating systems. The integrated orifice provides an equal-percentage flow characteristic.

Key features

DN 25, PN 40; Rp 1" female thread.
Kvs 6.3 m³/h.
Fluid: water, water with max. 50% vol. glycol.
Fluid temperature: -10...120°C [14...248°F].
Differential pressure: ∆pmax 350 kPa; closing pressure: 1400 kPa.
Equal-percentage characteristic; bubble-tight, leakage class A.
Nickel-plated brass body; stainless steel closing element and stem.

At fluid temperatures of -10...2°C, stem heating or a valve neck extension is recommended. The permissible fluid temperature may be limited depending on the actuator type; details are given in its data sheet.

Brand

Belimo
Reference

R2025-6P3-S2
EAN13

7630498105340

Kvs

6.3 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

2-way
Fluid temperature

-10...120°C [14...248°F]
Fluid temperature, note

For medium temperatures of -10...2°C, heating the shaft or extending the valve neck is recommended. The permissible medium temperature may be limited depending on the actuator type. Refer to the relevant actuator data sheets for restrictions.
Differential pressure

∆pmax 350 kPa
Closing pressure

1400 kPa
Differential pressure note

200 kPa for quiet operation
Flow characteristic

Equal-percentage characteristic
Permissible leakage

Bubble-tight, leakage class A
Pipe connection

Internal thread
