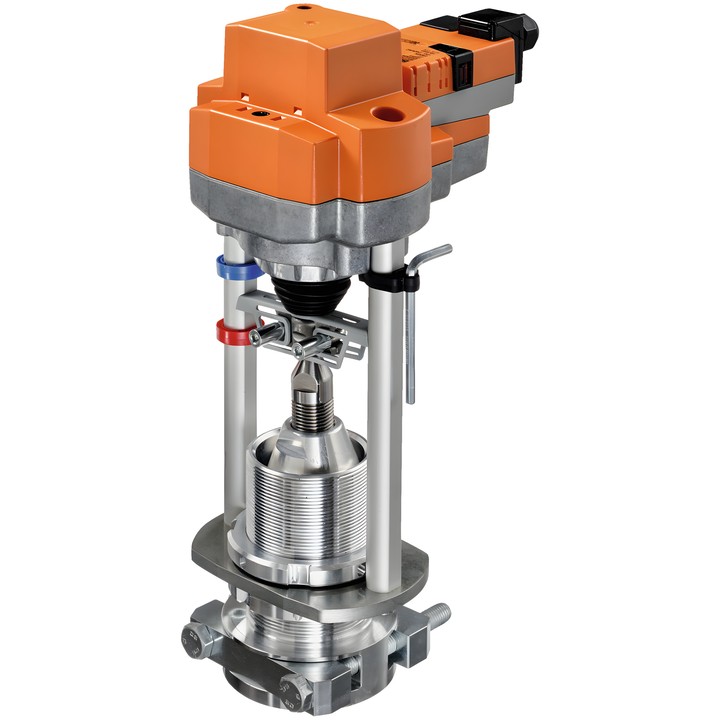

Belimo EV230A-RE - linear actuator for globe valves

Name: Belimo EV230A-RE - linear actuator for globe valves
Brand: Belimo
SKU: EV230A-RE
Price: 3658.29 PLN
Availability: BackOrder

Belimo

zł3,658.29

VAT included

zł2,974.22 tax excluded

RetroFIT+ linear actuator for 2- and 3-way globe valves. Force 2500 N, power supply AC 100...240 V, Close/Open or 3-point control, and 50 mm stroke.

Motor running time is 150 s / 40 mm (188 s / 50 mm). The actuator features manual operation by push-button with locking capability and IP54 protection.

Delivery in approx. 14 days

Belimo EV230A-RE actuator

The EV230A-RE is a RetroFIT+ linear actuator designed for 2- and 3-way globe valves. The documentation describes mounting RetroFIT+ actuators on valves from various manufacturers using a universal valve neck and stem adapter.

Key technical data

Actuating force: 2500 N; stroke: 50 mm.
Nominal voltage: AC 100...240 V; frequency: 50/60 Hz.
Control: Close/Open, 3-point.
Motor running time: 150 s / 40 mm (188 s / 50 mm).
Power consumption during operation: 5.5 W; in standby position: 1 W; for wire sizing: 9.5 VA.
Power and control connection: 4 mm² terminals (cable ø4...10 mm).
Manual operation by push-button with locking capability; mechanical position indicator for a 5...50 mm stroke.
Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.

The actuator is protected against overload and stops automatically when it reaches the end position. With 3-point pulse control, the controller must be set to stop when the end position is reached.
