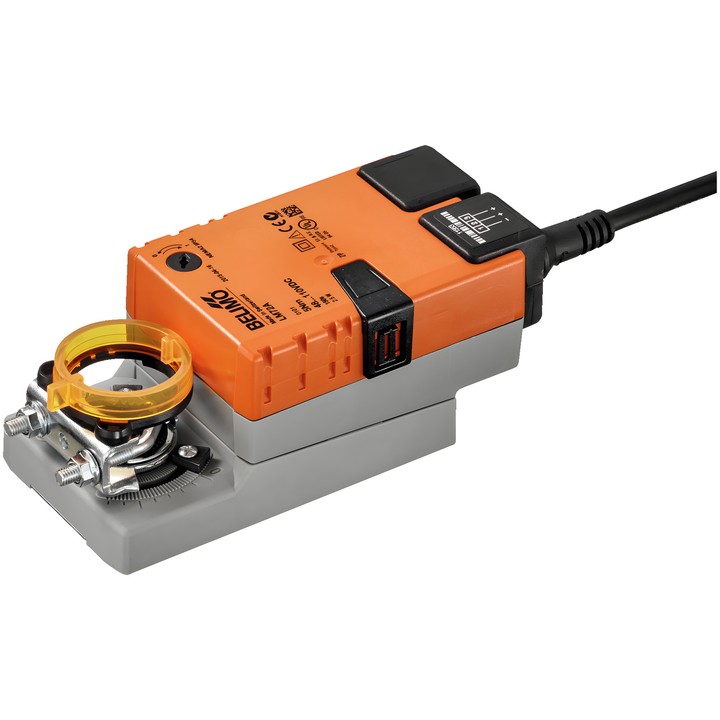

Belimo LM72A - damper actuator

Belimo LM72A - damper actuator

Belimo
zł1,125.45
VAT included
zł915.00 tax excluded

Belimo LM72A damper actuator with a torque of 5 Nm and a rated voltage of DC 48...110 V. Supports close/open, 3-point control; motor running time is 150 s / 90°.

Equipped with a universal clamp 6...20 mm, manual override by push-button with locking option, and mechanical rotation angle limiters.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo LM72A – damper actuator

LM72A is an actuator for positioning air dampers in technical building systems. The technical data sheet specifies a damper size of up to approx. 1 m².

Key features and parameters

  • Torque: 5 Nm; rated voltage: DC 48...110 V.
  • Control: close/open, 3-point.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°.
  • Direction of rotation selected using switch 0 (counter-clockwise) / 1 (clockwise).
  • Manual override by push-button with locking option; adjustable mechanical rotation angle limiters on both sides.
  • Mechanical connection: universal clamp 6...20 mm; mechanical plug-in position indicator.
  • Power and control connection: cable 1 m, 3x 0.75 mm².
  • Power consumption during operation: 2.5 W; in idle position: 2 W; sizing power for cable selection: 2.5 VA.
  • Degree of protection IEC/EN: IP54; protection class IEC/EN: II, reinforced insulation.

  • Brand
    Belimo
  • Reference
    LM72A
  • EAN13
    7630498120985

  • AC/DC voltage
    DC 48...110 V
  • Power consumption (running)
    2.5 W
  • Power consumption (holding)
    2 W
  • Rated power
    2.5 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm²
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • NEMA protection rating
    NEMA 2
  • Enclosure type
    UL Enclosure Type 2
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Torque
    5 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 6...20 mm

Techniczna karta katalogowa

Download (1.13MB)

Instrukcja montażu

Download (507.39KB)

EU Declaration of Conformity – LM72A

Download (32.71KB)

Environmental Declaration – LM..

Download (72.42KB)
