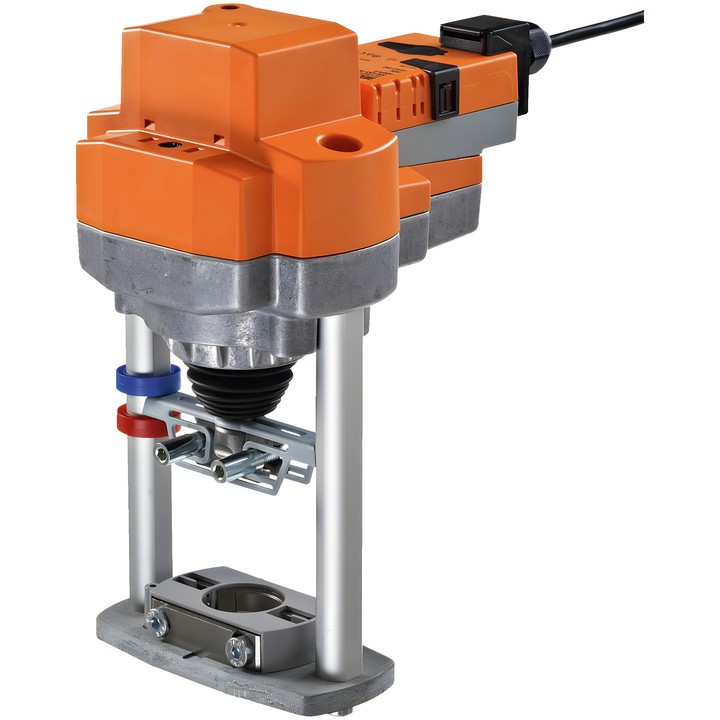

Belimo EV24A-SR-TPC - linear actuator for globe valves

Name: Belimo EV24A-SR-TPC - linear actuator for globe valves
Brand: Belimo
SKU: EV24A-SR-TPC
Price: 2859.27 PLN
Availability: BackOrder

Belimo

zł2,859.27

VAT included

zł2,324.61 tax excluded

Belimo EV24A-SR-TPC linear actuator for 2- and 3-way globe valves. AC/DC 24 V supply, 2500 N force and 2...10 V modulating control.

40 mm stroke, 150 s / 40 mm travel time and 2...10 V position feedback signal. IP54 protection rating.

Delivery in approx. 14 days

Belimo EV24A-SR-TPC

Linear actuator for 2- and 3-way globe valves, controlled by a modulating signal. Designed for stationary heating, ventilation and air conditioning installations.

Key features

Actuator force: 2500 N; stroke: 40 mm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Operating range of control signal Y: 2...10 V; position feedback signal U: 2...10 V.
Travel time: 150 s / 40 mm.
Power consumption during operation: 4 W; at rest: 1.5 W; for cable sizing: 6 VA.
Power and control connection: terminals with 1 m cable, 4x 0.75 mm² (4 mm² terminal).
Manual adjustment using a push-button that can be locked.
Setpoint range adaptation: manual, automatic on first power-up.
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).

Brand

Belimo
Reference

EV24A-SR-TPC
EAN13

7630498111495

AC/DC voltage

AC/DC 24 V
Power consumption (running)

4 W
Power consumption (holding)

1.5 W
Rated power

6 VA
Power supply control connection

Terminals with 1 m cable, 4x 0.75 mm², terminal 4 mm²
Control type

DC 2...10 V
Protection rating

IP54
NEMA protection rating

NEMA 2
Enclosure type

UL Enclosure Type 2
