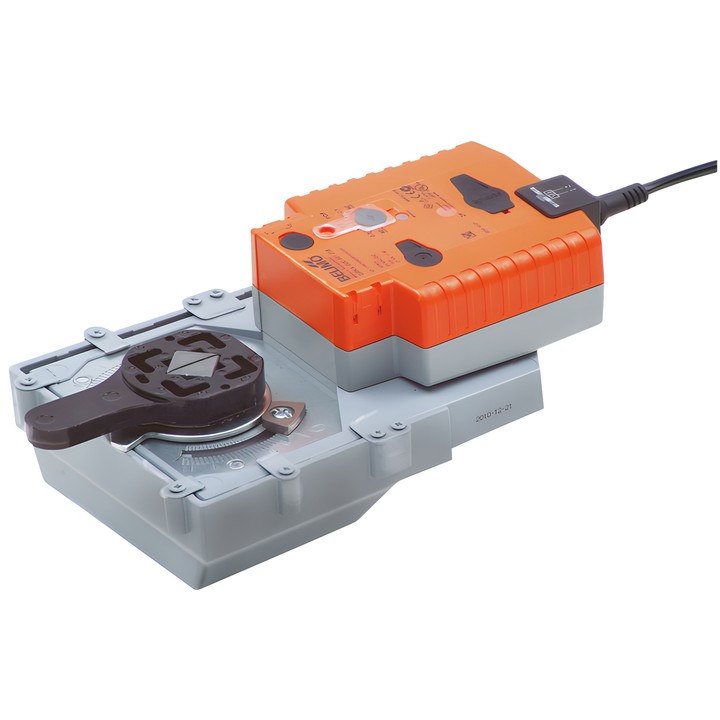

Belimo GRK24A-SZ-5 - analog rotary actuator with safety function

Name: Belimo GRK24A-SZ-5 - analog rotary actuator with safety function
Brand: Belimo
SKU: GRK24A-SZ-5
Price: 3040.98 PLN
Availability: BackOrder

Belimo

zł3,040.98

VAT included

zł2,472.34 tax excluded

Belimo GRK24A-SZ-5 rotary actuator for rotary valves and butterfly valves. Torque 40 Nm, power supply AC/DC 24 V, analog control 0.5...10 V and feedback signal 0.5...10 V.

If the power supply fails, energy stored in the capacitors enables the valve to be moved to the selected safety position.

Delivery in approx. 14 days

Belimo GRK24A-SZ-5

Analog rotary actuator with safety function for rotary valves and butterfly valves. During normal operation, the actuator positions the valve as required and charges the built-in capacitors. If the power supply fails, it uses the stored energy to move the valve to the safety position.

Key features and specifications

Motor torque: 40 Nm; rated voltage: AC/DC 24 V.
Operating range Y: 0.5...10 V; feedback signal U: 0.5...10 V.
Safety position: NC/NO or adjustable from 0...100% using the POP dial, in 10% increments.
Power-failure override time (PF): 2s; motor running time: 150 s / 90°; safety function running time: 35 s / 90°.
Flange connection: F05; power / control connection: Cable 1 m, 4x 0.75 mm².
Power consumption during operation: 11 W; in standby: 3 W; rated power: 21 VA.
Enclosure protection rating IEC/EN: IP54; protection rating NEMA/UL: NEMA 2.
Manual override using a push-button; rotation angle adjustable with mechanical stops.

The actuator is designed for stationary heating, ventilation and air-conditioning systems. The capacitors are supplied fully discharged and must be charged for approximately 20 s before commissioning.
