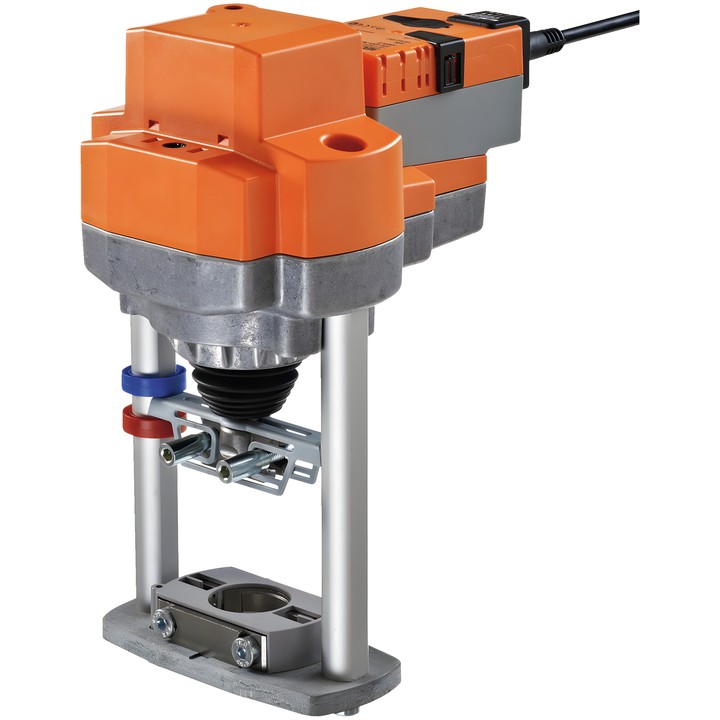

Belimo EVC24A-SR - linear actuator for globe valves

Name: Belimo EVC24A-SR - linear actuator for globe valves
Brand: Belimo
SKU: EVC24A-SR
Price: 3053.65 PLN
Availability: BackOrder

Belimo

zł3,053.65

VAT included

zł2,482.64 tax excluded

Belimo EVC24A-SR linear actuator for 2-way and 3-way globe valves. Thrust 2500 N, AC/DC 24 V power supply, 2...10 V modulating control and 40 mm stroke.

Running time is 35 s / 40 mm. The actuator has a 2...10 V position feedback signal, push-button manual override and IP54 protection rating.

Delivery in approx. 14 days

Belimo EVC24A-SR – actuator for globe valves

Modulating actuator for 2-way and 3-way globe valves. The control signal Y determines the actuator position, while the feedback signal U enables electrical position readout.

Main features and specifications

Thrust: 2500 N; stroke: 40 mm.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Modulating control, Y signal range: 2...10 V; position feedback signal U: 2...10 V.
Running time: 35 s / 40 mm.
Power consumption during operation: 11 W; in standby position: 1.5 W; for cable sizing: 18 VA.
Power and control connection: 1 m cable, 4x 0.75 mm².
Push-button manual override with locking option; mechanical position indicator.
Setting range adaptation: manual, automatic at first power-up.
IEC/EN protection rating: IP54; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
