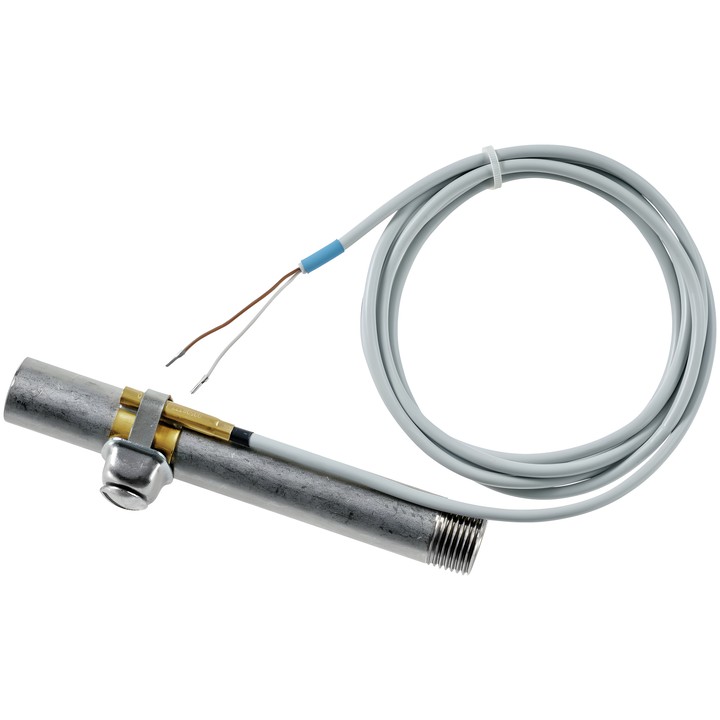

Belimo 01ST-1A3 - passive Pt100 contact temperature sensor

Name: Belimo 01ST-1A3 - passive Pt100 contact temperature sensor
Brand: Belimo
SKU: 01ST-1A3
Price: 70.48 PLN
Availability: BackOrder

Belimo

zł70.48

VAT included

zł57.30 tax excluded

Passive Belimo 01ST-1A3 contact temperature sensor with Pt100 output signal, designed to measure the temperature of pipes and curved surfaces. Measuring range: -35...100°C [-30...210°F].

Features a 6 mm diameter probe, 2 m, 2-wire cable and a mounting strap for pipes ø20...110 mm [0.8...4.3"]. IEC/EN protection rating IP65.

Delivery in approx. 14 days

Belimo 01ST-1A3 – contact temperature sensor

Passive Pt100 sensor for measuring temperature on pipes and curved surfaces. The model has a brass probe, PVC cable and a mounting strap for pipes.

Key features

Passive temperature sensor output signal: Pt100.
Measuring range: -35...100°C [-30...210°F].
Probe diameter: 6 mm.
Electrical connection: 2 m, 2-wire cable.
IEC/EN protection rating: IP65.
Accuracy for Pt..: Class B, ±0.3°C @ 0°C [±0.5°F @ 32°F].
Measuring current for Pt100: <1 mA @ 0°C [32°F].
Time constant τ (63%) on a water pipe with contact fluid: typically 17 s.
Includes A-22P-A47 mounting strap for pipes ø20...110 mm [0.8...4.3"].

When measuring on a pipe surface, the influence of ambient temperature can be reduced by using contact fluid. It is listed in the documentation as an optional accessory.
