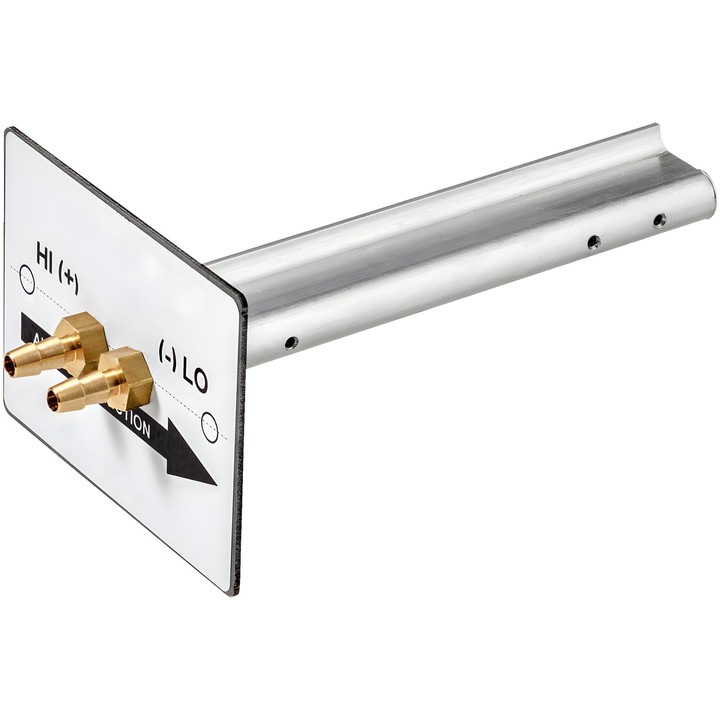

Belimo EXT-AC-R250 - probe for measuring air volume flow

Name: Belimo EXT-AC-R250 - probe for measuring air volume flow
Brand: Belimo
SKU: EXT-AC-R250
Price: 559.65 PLN
Availability: OutOfStock

Belimo

zł559.65

VAT included

zł455.00 tax excluded

Probe for measuring air volume flow in circular ducts. Probe length: 250 mm. Compatible with the 22ADP-.. differential pressure sensor; measurements are possible at air velocities from 2 to 25 m/s.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo EXT-AC-R250

Probe for measuring air volume flow in circular ducts, designed for use with the 22ADP-... differential pressure sensor.

Key features

Probe length: 250 mm.
Air velocity range for measurement: 2 to 25 m/s.
Medium: air.
Medium temperature: 5...95°C [41...203°F].
Probe material: aluminium.
Value B according to the type table: 25 mm.
Weight according to the type table: 0.15 kg.

During commissioning, enter the settings in the 22ADP-.. differential pressure sensor according to the documentation, including setting the fan manufacturer to AirConcepts, the k-factor, and the lower and upper volumetric flow values.
