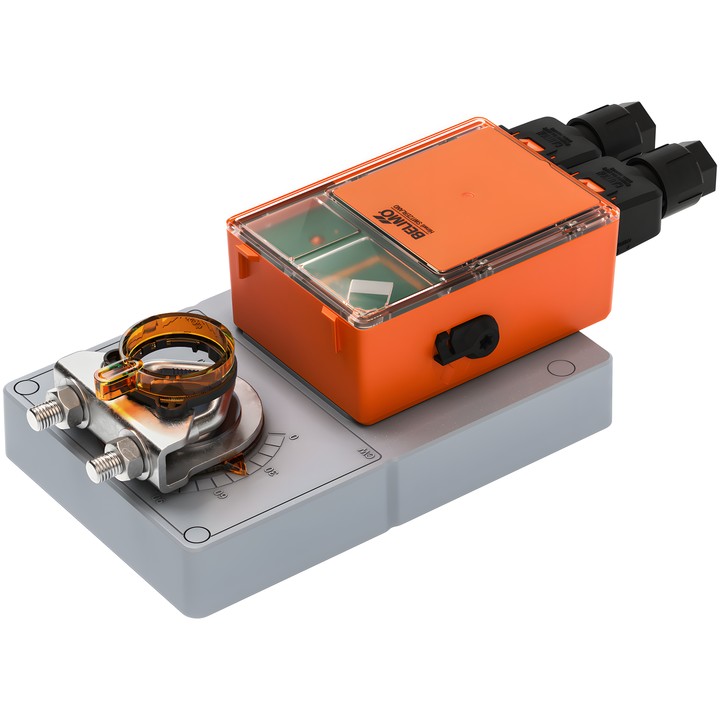

Belimo GM230S.46 - 40 Nm damper actuator

Belimo GM230S.46 - 40 Nm damper actuator

Belimo
zł1,558.56
VAT included
zł1,267.12 tax excluded

Belimo GM230S.46 damper actuator with 40 Nm torque, AC 100...240 V supply and Close/Open or 3-point control. Running time is 35 s / 90° and can be set within 35...150 s.

Equipped with 2x SPST, spring terminals with a detachable connection, manual override and an NFC interface for configuration using Belimo Assistant 2.

Delivery in approx. 14 days
Share

Belimo GM230S.46 damper actuator

Rotary actuator for controlling dampers in technical building systems. Supports Close/Open and 3-point control. It has no safety function.

Key features

  • Torque: 40 Nm; rated voltage: AC 100...240 V, 50/60 Hz.
  • Running time: 35 s / 90°; adjustable motor running time: 35...150 s.
  • 2x SPST (Single Pole, Single Throw) — integrated auxiliary switches with switching points configurable using Belimo Assistant 2.
  • Maximum rotation angle: 95°; electronic angle limitation on both sides is possible using Belimo Assistant 2.
  • Reversible universal mounting clamp for shafts 12...26.7 mm.
  • Manual override using a side lever with locking option; green LED indicates device status.
  • NFC interface enables parameter changes using Belimo Assistant 2.
  • Detachable connection with spring terminals; IP54 protection rating.

Electrical data

  • Power consumption during operation: 5.5 W; at rest: 0.6 W; sizing power: 13 VA.
  • IEC/EN protection class: II, reinforced insulation.
  • Ambient temperature: -30...55°C [-22...131°F].

  • Brand
    Belimo
  • Reference
    GM230S.46
  • EAN13
    7630498145698

  • AC/DC voltage
    AC 100...240 V
  • Auxiliary switch connection
    Terminals 2.5 mm² [14 AWG], (cable ø4...7,5 mm [ø0.16...0.29"], 4-core)
  • Power consumption (running)
    5.5 W
  • Power consumption (holding)
    0.6 W
  • Rated power
    13 VA
  • Power supply control connection
    Terminals 2.5 mm² [14 AWG] (cable ø4...7,5 mm [ø0.16...0.29"], 3-core)
  • Control type
    Open/close, 3-point
  • Protection rating
    IP54
  • Manual override
    With side lever, lockable
  • Running time (motor)
    35 s / 90°
  • Variable motor running time
    35...150 s
  • Ambient temperature
    -30...55°C [-22...131°F]
  • Auxiliary contacts
    2x SPST
  • Torque
    40 Nm
  • Direction of movement - motor
    clockwise rotation (cw)
  • Rotational angle
    95°
  • Mechanical connection
    Reversible universal mounting clamp 12...26.7 mm

Techniczna karta katalogowa

Download (2.7MB)

Instrukcja montażu

Download (1.55MB)

Techniczna karta katalogowa – GM230S.46

Download (2.72MB)

EU Declaration of Conformity – GM230S.46

Download (157.17KB)
