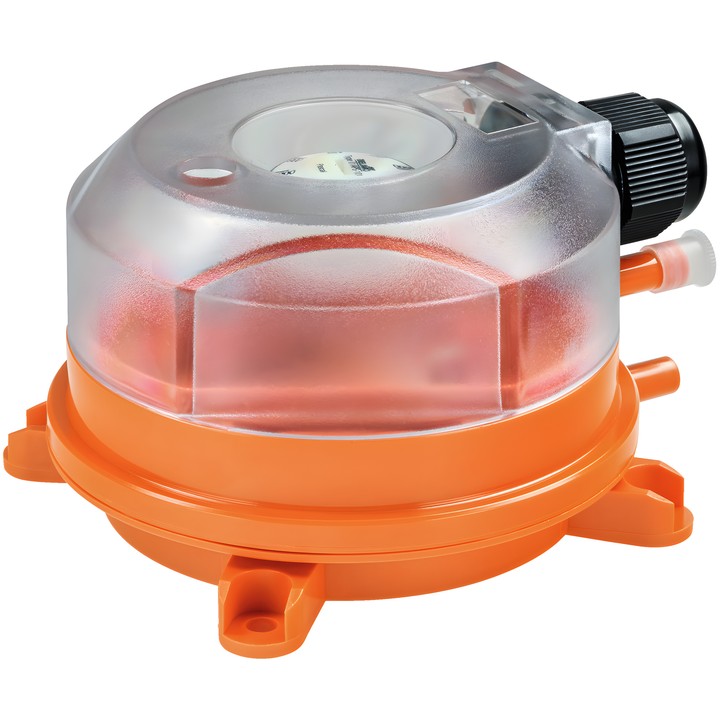

Belimo 01APS-10R.1 - differential pressure switch

Name: Belimo 01APS-10R.1 - differential pressure switch
Brand: Belimo
SKU: 01APS-10R.1
Price: 117.16 PLN
Availability: BackOrder

Belimo

zł117.16

VAT included

zł95.25 tax excluded

Differential pressure switch for monitoring positive pressure, negative pressure and differential air pressure, as well as other non-flammable, non-aggressive gases. Measuring range: 20...300 Pa. Equipped with adjustable switching point and automatic reset.

Bulk-packaged version, 45 pcs., without tubing or connection components.

Delivery in approx. 14 days

Belimo 01APS-10R.1 differential pressure switch

Device for monitoring positive pressure, negative pressure and differential pressure in air or other non-flammable, non-aggressive gases in stationary HVAC systems. The pressure switch has an adjustable switching point and automatic reset.

Key features

Pressure measuring range: 20...300 Pa.
Output signal: switch; max. contact load 1,0 A / AC 250 V.
Electrical connection: terminals for wires 0.5...1.5 mm².
Degree of protection: IP54 and NEMA 13.
Ambient and media temperature: -20...85°C [-4...185°F].
Version 01APS-10R.1: bulk package, 45 pcs., without tubing or connection components.

Switching point parameters are specified for vertical installation, recommended with the pressure connections facing downwards. Installing the pressure switch upside down is not permitted.
