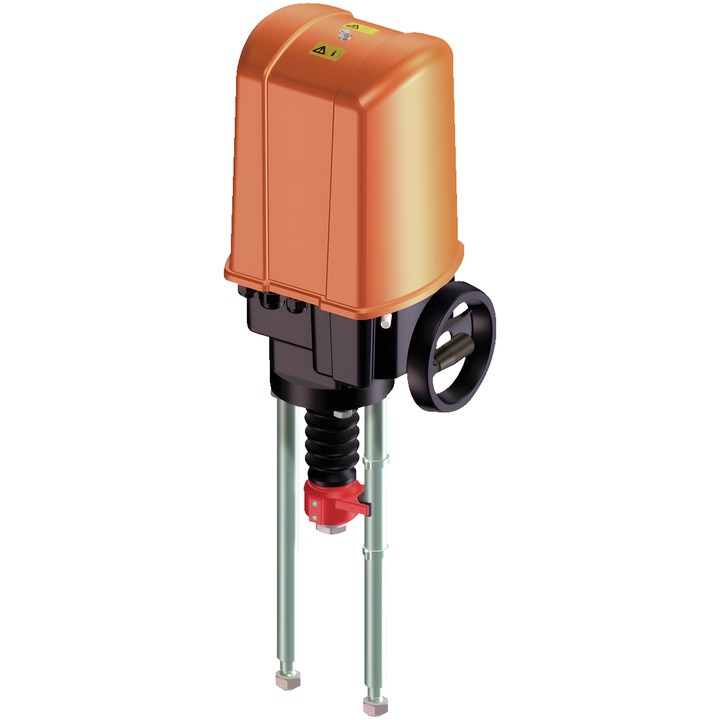

Belimo GV12-24-SR-T - linear actuator for large globe valves

Name: Belimo GV12-24-SR-T - linear actuator for large globe valves
Brand: Belimo
SKU: GV12-24-SR-T
Price: 18142.65 PLN
Availability: BackOrder

Belimo

zł18,142.65

VAT included

zł14,750.12 tax excluded

Belimo GV12-24-SR-T linear actuator for large 2- and 3-way globe valves DN 200/250. The actuator force is 15000 N, the stroke is 65 mm, and the operating time is 82 s / 65 mm.

AC/DC 24 V supply, modulating control (0.5)2...10 V and 2...10 V position feedback signal. IEC/EN protection rating IP65.

Delivery in approx. 14 days

Belimo GV12-24-SR-T

Electronic linear actuator designed for large 2- and 3-way globe valves DN 200/250. Control is modulating; the actuator has a 65 mm stroke and a mechanical position indicator.

Key features and technical data

Actuator force: 15000 N.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
Power consumption for wire sizing: 74 VA.
Operating range Y: (0.5)2...10 V; position feedback signal U: 2...10 V.
Stroke: 65 mm; motor operating time: 82 s / 65 mm.
Power and control connection: 2.5 mm² terminals.
Manual override: temporary, using the handwheel (non-rotating).
IEC/EN protection rating: IP65; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
Ambient temperature: -20...70°C.
Weight: 9.5 kg.

The actuator has protection against short circuit, reverse polarity and overload. Current consumption is reduced in the rest position.
