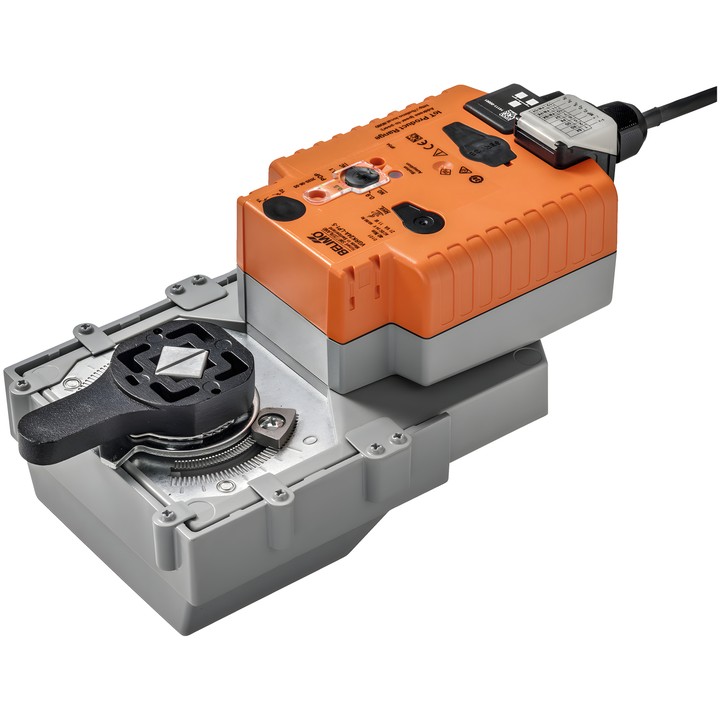

Belimo VGRK24A-LP1-5 - rotary actuator for ball valves

Name: Belimo VGRK24A-LP1-5 - rotary actuator for ball valves
Brand: Belimo
SKU: VGRK24A-LP1-5
Price: 6791.14 PLN
Availability: BackOrder

Belimo

zł6,791.14

VAT included

zł5,521.25 tax excluded

Communicative rotary actuator for ball valves, with fail-safe function and 40 Nm torque. AC/DC 24 V supply; modulating, communicative and hybrid control, with communication via Cloud, BACnet/IP and Modbus TCP.

Motor running time is 150 s / 90°, and running time to the fail-safe position is 35 s / 90°. Y operating range: 2...10 V.

Delivery in approx. 14 days

Belimo VGRK24A-LP1-5

Rotary actuator for ball valves with a fail-safe function provided by capacitors. Enables communication via Cloud, BACnet/IP and Modbus TCP, as well as conversion of sensor signals.

Key features and parameters

Motor torque: 40 Nm; rated voltage: AC/DC 24 V, 50/60 Hz.
Modulating, communicative, hybrid and Cloud control; Y operating range: 2...10 V, adjustable 0.5...10 V.
Communication: Cloud, BACnet/IP, Modbus TCP; Ethernet 10/100 Mbit/s, TCP/IP, integrated web server and RJ45 socket.
Motor running time: 150 s / 90°, adjustable 90...150 s; running time to the fail-safe position: 35 s / 90°.
Fail-safe position: NC/NO or adjustable 0...100%; power failure support time (PF): 2 s, adjustable 0...10 s.
Connection for two sensors; conversion of their signals for the supervisory system.
Manual adjustment by push-button, mechanical position indicator and mechanical rotation angle stops.
Power consumption during operation: 11 W; at rest: 3 W; sizing power for cable selection: 21 VA.
Power and control connection: 1 m cable, 6x 0.5 mm², FRNC; connection flange: F05.
IEC/EN protection rating: IP40; IP54 when using a protective cover or protective gland for the RJ45 socket. IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
