Belimo 01ATS-1040B - capillary frost protection thermostat

Belimo 01ATS-1040B – frost protection thermostat

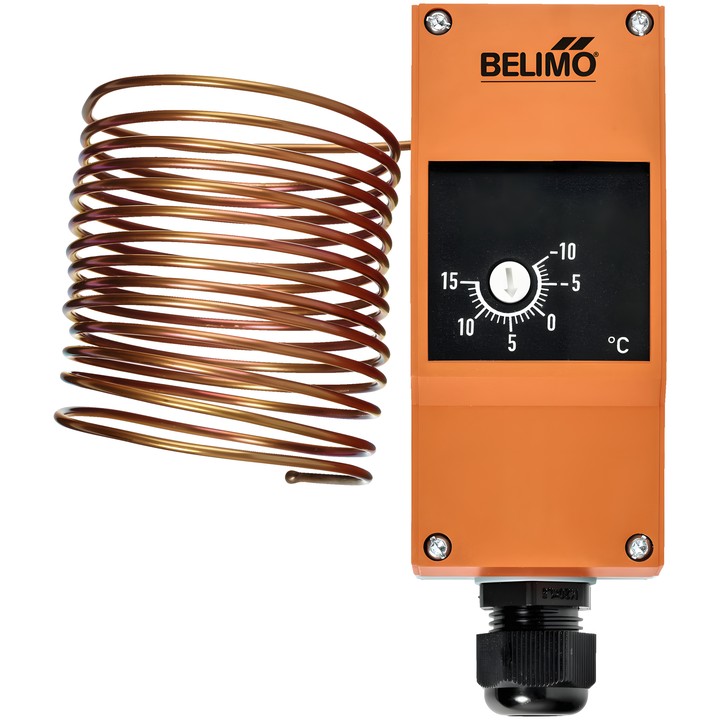

The device monitors the temperature of water and air heaters in ventilation and air conditioning systems. The frost alarm is provided by a single-pole SPDT changeover contact. The 01ATS-1040B version has a 3 m capillary and automatic reset: when the temperature rises, the microswitch returns to its initial position.

Key features and specifications

• Setting range: -10...15°C; factory setting: 5°C.
• Capillary: 3 m; capillary material: copper.
• Switching differential: 1.5 K (tolerance ±1 K); setting accuracy: ±2 K.
• IEC/EN protection rating: IP65.
• Electrical connection: spring terminal, max. 2.5 mm².
• Cable gland with strain relief M20x1.5 mm, for cable ø6...12 mm.
• Contact rating: AC 230 V 16 (2.5) A in position 1-2; AC 230 V 2 (0.4) A in position 1-4; DC 230 V 0.25 A.
• Included: mounting kit with 6 brackets, type A-22D-A08.

If the capillary temperature falls below the set point over a 150 mm section, circuit 1-2 opens and circuit 1-4 closes. The ambient temperature at the housing must exceed the set switching point by more than 2 K.
