Belimo 22ADP-156L - air differential pressure sensor

Belimo 22ADP-156L - air differential pressure sensor

Belimo
zł888.17
VAT included
zł722.09 tax excluded

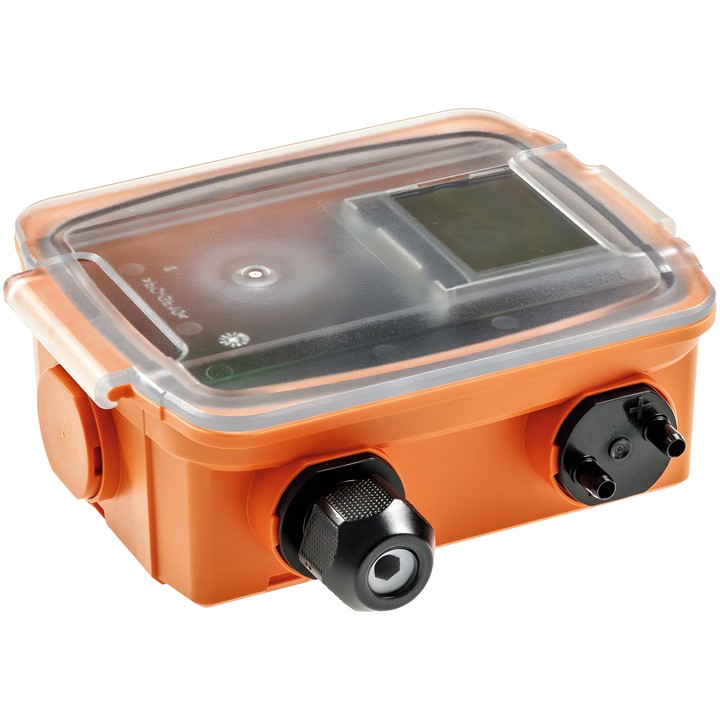

Belimo 22ADP-156L air differential pressure sensor with LCD and 8 selectable measuring ranges, up to 0...7000 Pa. Measures differential pressure and the volumetric flow rate derived from it.

AC/DC 24 V supply, Modbus RTU communication and 0...5 V or 0...10 V analogue outputs. Enclosure protection rating IP65 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 22ADP-156L – air differential pressure sensor

The device is designed to monitor positive pressure, negative pressure or differential pressure in air and other non-flammable, non-aggressive gases in stationary HVAC systems. Volumetric flow rate is calculated from differential pressure, the k factor and altitude above sea level.

Key features and specifications

  • Measuring range: 0...7000 Pa (0...28 inch WC); 8 selectable measuring ranges.
  • Measured values: differential pressure and volumetric flow rate.
  • Communication: Modbus RTU.
  • Analogue outputs: 2 x 0...5 V, 0...10 V, min. resistance 10 kΩ; 0...5/10 V signal selectable by switch. AOU1 corresponds to differential pressure, and AOU2 to volumetric flow rate.
  • Nominal voltage: AC/DC 24 V.
  • LCD, 29x35 mm, with backlight.
  • Typical response time: adjustable to 0.8 s or 4.0 s.
  • Protection rating: IP65 / NEMA 4X.
  • Electrical connection: detachable spring terminal block, max. 2.5 mm².
  • Included: mounting plate, 2 m PVC cable, 2 plastic duct connections, cable gland, plugs and screws.

  • Brand
    Belimo
  • Reference
    22ADP-156L
  • EAN13
    7630498100864

  • Electrical connection
    Terminals
  • Measured values
    Differential pressure Volume flow
  • Output signal
    Modbus 0...5 V 0...10 V
  • Pressure measuring range
    0...7000 Pa | 0...28 inch WC
  • AC/DC voltage
    AC/DC 24 V
  • Active sensor output note
    Output signal 0...5/10 V selectable by switch
  • Display type
    LCD
  • Output voltage range [Range]
    2 x 0...5 V, 0...10 V, min. resistance 10 kΩ
  • Communication
    Modbus RTU

Techniczna karta katalogowa

Download (3.69MB)

Instrukcja montażu

Download (1.56MB)

Techniczna karta katalogowa – 22ADP-156..

Download (3.69MB)

EU Declaration of Conformity – 22ADP-156L

Download (39.79KB)

Environmental Declaration – 22ADP..

Download (72.08KB)
In business since 2005
Over 20 years of experience
A trusted partner
Reliable service and customer trust
Technical support
Help with selecting and operating equipment
