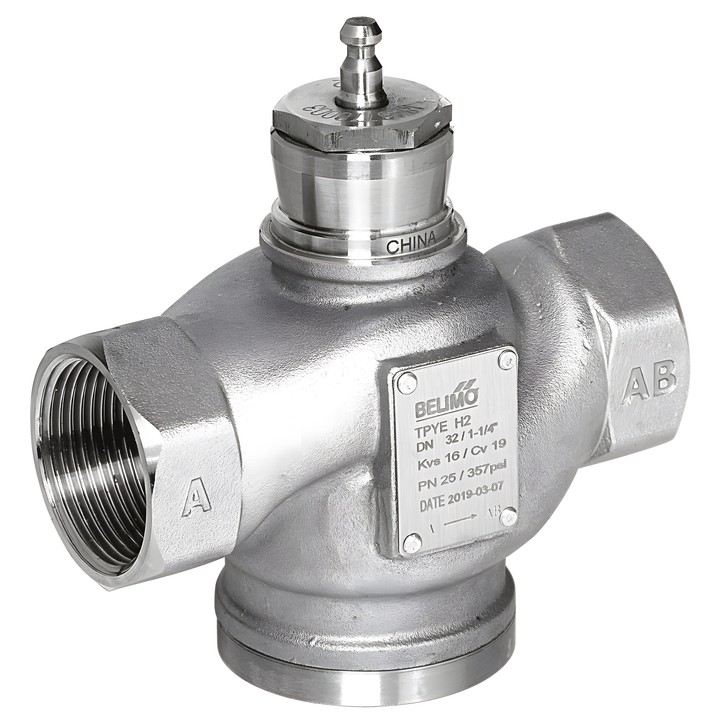

Belimo H250S-P - 2-way stainless steel globe valve

Name: Belimo H250S-P - 2-way stainless steel globe valve
Brand: Belimo
SKU: H250S-P
Price: 2370.54 PLN
Availability: BackOrder

Belimo

zł2,370.54

VAT included

zł1,927.27 tax excluded

Belimo H250S-P 2-way globe valve: DN 50, PN 25, Rp 2" female thread and Kvs 40 m³/h. The body is made of AISI 304 stainless steel.

Suitable for water and water with a maximum of 50% by volume glycol. Fluid temperature: 0...130°C [32...266°F].

Delivery in approx. 14 days

Belimo H250S-P – 2-way globe valve

Female-threaded valve for regulating the water side of ventilation and heating systems in open and closed water circuits.

Key features

DN 50, PN 25, ps 2500 kPa; Rp 2" connection.
Kvs 40 m³/h; stroke 20 mm.
Medium: water, water with a maximum of 50% by volume glycol.
Fluid temperature: 0...130°C [32...266°F].
Equal-percentage characteristic, optimised in the opening range.
Permissible leakage: max. 0.01% of the Kvs value.
Body, closing element, stem and seat: AISI 304 stainless steel; stem seal: PTFE+FFKM.

Installation is permitted from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Follow the flow direction indicated by the arrow on the body. The maximum differential pressure and closing pressure depend on the globe valve actuator installed.
