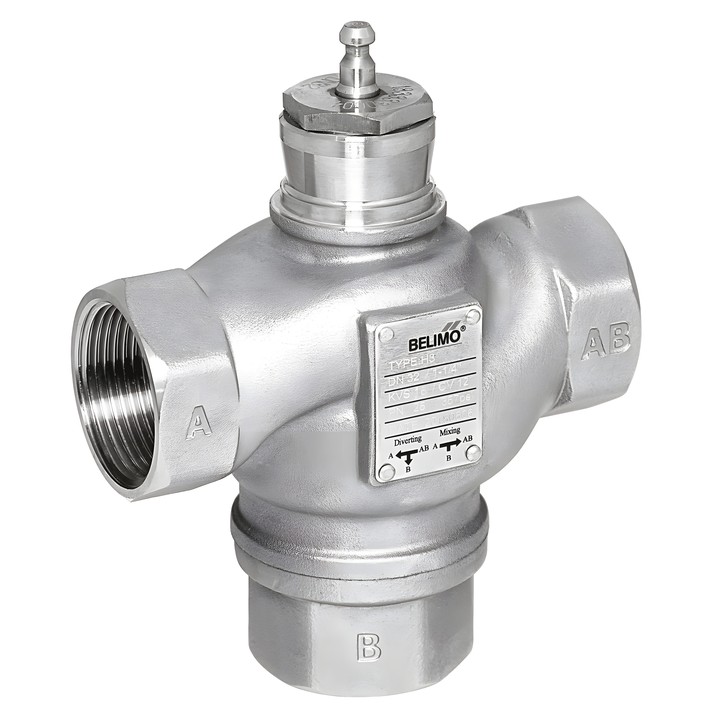

Belimo H315S-G - 3-way stainless steel globe valve

Belimo H315S-G – 3-way globe valve

Stainless steel valve for open and closed water systems and water-side control in ventilation and heating systems.

Key features

• DN 15; PN 25; ps 2500 kPa.
• Rp 1/2" internal thread; pipe connection in accordance with ISO 7-1.
• Kvs 1.6 m³/h; stroke 10 mm.
• Fluid: water, water with up to 50% vol. glycol.
• Fluid temperature: 0...130°C [32...266°F].
• Flow characteristic: A – AB – equal percentage; B – AB – linear.
• Permissible leakage: A – AB – max. 0.02% of the Kvs value; B – AB – max. 0.02% of the Kvs value.
• Body, closing element, stem and seat: AISI 304 stainless steel; stem seal: PTFE+FFKM.
• Permissible mounting position: from vertical to horizontal in relation to the stem; mounting with the stem pointing downwards is not permitted.

Maximum differential pressure and closing pressure depend on the installed globe valve actuator.
