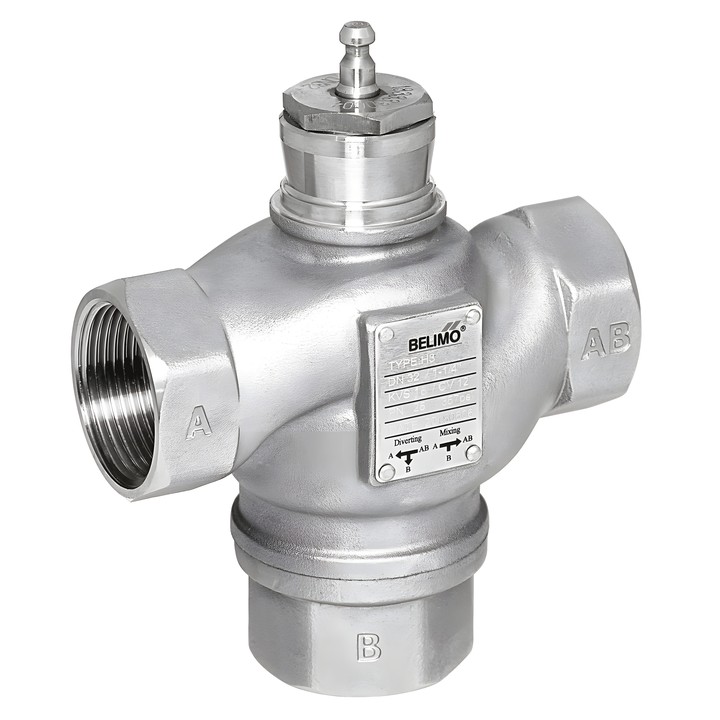

Belimo H315S-J - 3-way stainless steel globe valve

Name: Belimo H315S-J - 3-way stainless steel globe valve
Brand: Belimo
SKU: H315S-J
Price: 1071.58 PLN
Availability: BackOrder

Belimo

zł1,071.58

VAT included

zł871.20 tax excluded

Belimo H315S-J is a 3-way globe valve made of AISI 304 stainless steel, with a diameter of DN 15, Rp 1/2" female threaded connection, PN 25 and Kvs 4.0 m³/h.

Designed for open and closed water systems and water-side control in ventilation and heating systems. Medium temperature: 0...130°C [32...266°F].

Delivery in approx. 14 days

Belimo H315S-J – 3-way globe valve

Female-threaded valve designed for open and closed water systems and water-side control in ventilation and heating systems.

Key features and specifications

Pattern: 3-way; DN 15; Rp 1/2"; PN 25.
Kvs: 4.0 m³/h; stroke: 10 mm.
Medium: water, water with a maximum of 50% by volume glycol.
Medium temperature: 0...130°C [32...266°F].
Flow characteristic: A – AB: equal percentage; B – AB: linear.
Permissible leakage: A – AB: max. 0,02% of Kvs value; B – AB: max. 0,02% of Kvs value.
Body, closing element, stem and seat: AISI 304 stainless steel; stem seal: PTFE+FFKM.
Permitted installation from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted.

Maximum differential pressure and close-off pressure depend on the globe valve actuator installed.

Brand

Belimo
Reference

H315S-J
EAN13

7630498105517

Kvs

4.0 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

3-way
Fluid temperature

0...130°C [32...266°F]
Flow characteristic

A – AB: equal-percentage; B – AB: linear
Permissible leakage

A – AB: max. 0.02% of Kvs value; B – AB: max. 0.02% of Kvs value
Pipe connection

Internal thread
