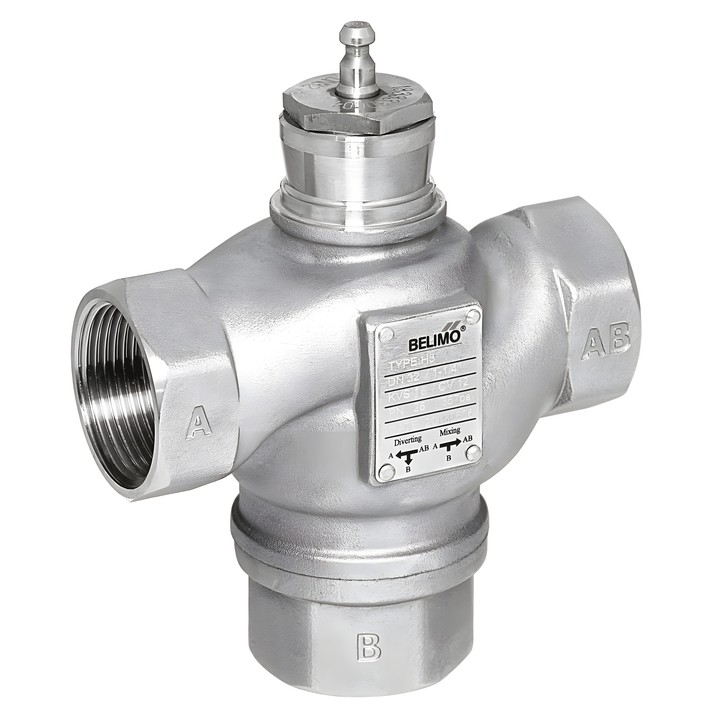

Belimo H320S-K - 3-way stainless steel globe valve

Name: Belimo H320S-K - 3-way stainless steel globe valve
Brand: Belimo
SKU: H320S-K
Price: 1231.18 PLN
Availability: BackOrder

Belimo

zł1,231.18

VAT included

zł1,000.96 tax excluded

Belimo H320S-K is a 3-way globe valve with Rp 3/4" female thread. It has DN 20, PN 25, Kvs 6.3 m³/h and an AISI 304 stainless steel body.

Designed for water and water with a maximum of 50% vol. glycol, at a fluid temperature of 0...130°C [32...266°F].

Delivery in approx. 14 days

Belimo H320S-K – 3-way globe valve

A stainless steel globe valve with female thread, designed for water-side control in ventilation and heating systems. It can be used in open and closed water systems.

Key features

Type: H320S-K; 3-way design.
DN 20; PN 25; Rp 3/4" female-thread connection.
Kvs 6.3 m³/h; stroke 10 mm.
Fluid: water, water with a maximum of 50% vol. glycol.
Fluid temperature: 0...130°C [32...266°F].
Flow characteristic: A – AB equal-percentage; B – AB linear.
Permissible leakage: A – AB max. 0.02% of the Kvs value; B – AB max. 0.02% of the Kvs value.
Body, closing element, stem and seat: AISI 304 stainless steel; stem seal: PTFE+FFKM.
Permissible installation position: from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted.

The valve is operated by a globe valve actuator. The maximum differential pressure and closing pressure depend on the actuator installed.

Brand

Belimo
Reference

H320S-K
EAN13

7630498105524

Kvs

6.3 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

3-way
Fluid temperature

0...130°C [32...266°F]
Flow characteristic

A – AB: equal-percentage; B – AB: linear
Permissible leakage

A – AB: max. 0.02% of Kvs value; B – AB: max. 0.02% of Kvs value
Pipe connection

Internal thread
