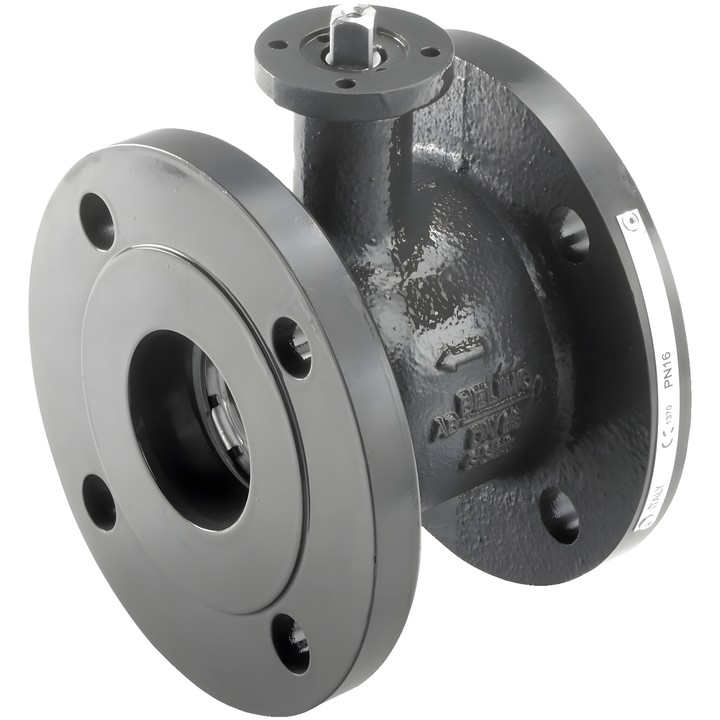

Belimo R6065W63-S8 - 2-way flanged control valve

Name: Belimo R6065W63-S8 - 2-way flanged control valve
Brand: Belimo
SKU: R6065W63-S8
Price: 2667.56 PLN
Availability: BackOrder

Belimo

zł2,667.56

VAT included

zł2,168.75 tax excluded

2-way control valve with control characteristic, DN 65, PN 16, Kvs 63 m³/h. Designed for water-side control in closed ventilation and heating systems.

Medium: water or water with a maximum of 50% vol. glycol. Medium temperature: -10...120°C [14...248°F].

Delivery in approx. 14 days

Belimo R6065W63-S8

2-way control valve with flanged connection according to EN 1092-2. The integrated control characteristic provides an equal-percentage flow characteristic. The valve is designed for closed water systems and water-side control in ventilation and heating systems.

Key technical data

DN 65, PN 16, Kvs 63 m³/h.
Medium: water, water with a maximum of 50% vol. glycol.
Medium temperature: -10...120°C [14...248°F].
Differential pressure: ∆pmax 400 kPa; 200 kPa to ensure quiet operation.
Closing pressure: 690 kPa.
Flow characteristic: equal-percentage (VDI/VDE 2173), optimised in the opening range.
Tightness: bubble-tight, leakage rate class A (EN 12266-1).
Rotation angle: 90°; operating range: 15...90°.
Body: EN-GJL-250 (GG 25); closing element: AISI 316 stainless steel; stem: AISI 304 stainless steel; stem seal: EPDM; seat: PTFE.

Installation and operation

The valve is operated by a rotary actuator with modulating or 3-point control. Permitted installation position: from vertical to horizontal relative to the stem; installation with the stem pointing downwards is not permitted. Observe the flow direction indicated by the arrow on the body.
