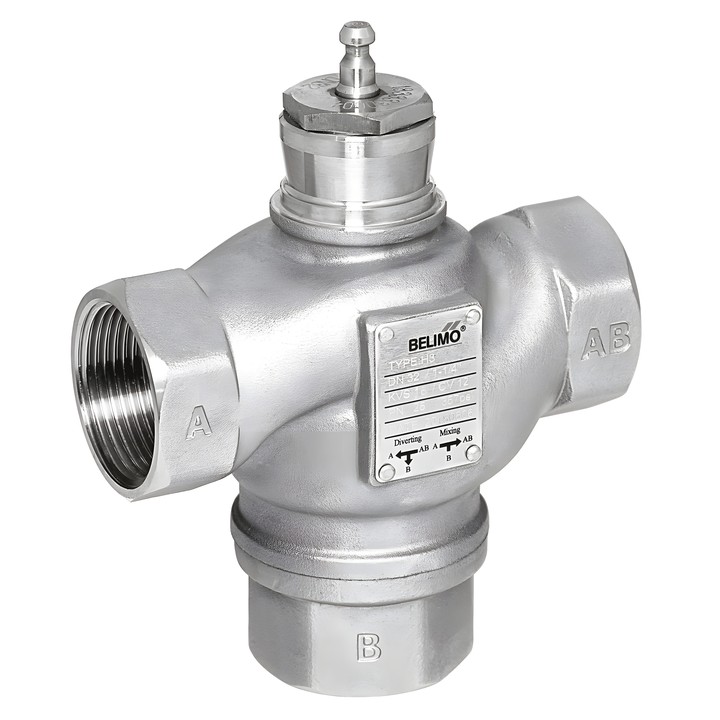

Belimo H350S-P - 3-way stainless steel globe valve

Name: Belimo H350S-P - 3-way stainless steel globe valve
Brand: Belimo
SKU: H350S-P
Price: 2720.12 PLN
Availability: BackOrder

Belimo

zł2,720.12

VAT included

zł2,211.48 tax excluded

Belimo H350S-P 3-way globe valve, DN 50, PN 25, with Rp 2" female thread and Kvs 40 m³/h. Body made of AISI 304 stainless steel.

Designed for open and closed water systems and for water-side control in ventilation and heating systems. Fluid temperature: 0...130°C [32...266°F].

Delivery in approx. 14 days

Belimo H350S-P – 3-way globe valve

Stainless steel globe valve with female thread. Designed for open and closed water systems and for water-side control in ventilation and heating systems.

Key features

Pattern: 3-way; DN 50; PN 25.
Connection: Rp 2" female thread; pipe thread according to ISO 7-1.
Kvs: 40 m³/h; stroke: 20 mm.
Fluid: water, water with up to 50% by volume glycol.
Fluid temperature: 0...130°C [32...266°F].
Flow characteristic: A – AB: equal percentage; B – AB: linear.
Permissible leakage: A – AB: max. 0.02% of the Kvs value; B – AB: max. 0.02% of the Kvs value.
Body, closing element, stem and seat: AISI 304 stainless steel; stem seal: PTFE+FFKM.

Installation is permitted from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted. Flow is possible in both directions. The maximum differential pressure and shut-off pressure depend on the globe valve actuator fitted.

Brand

Belimo
Reference

H350S-P
EAN13

7630498105562

Kvs

40 m³/h
Medium

Water, water with up to 50% vol. glycol.
Pattern

3-way
Fluid temperature

0...130°C [32...266°F]
Flow characteristic

A – AB: equal-percentage; B – AB: linear
Permissible leakage

A – AB: max. 0.02% of Kvs value; B – AB: max. 0.02% of Kvs value
Pipe connection

Internal thread
