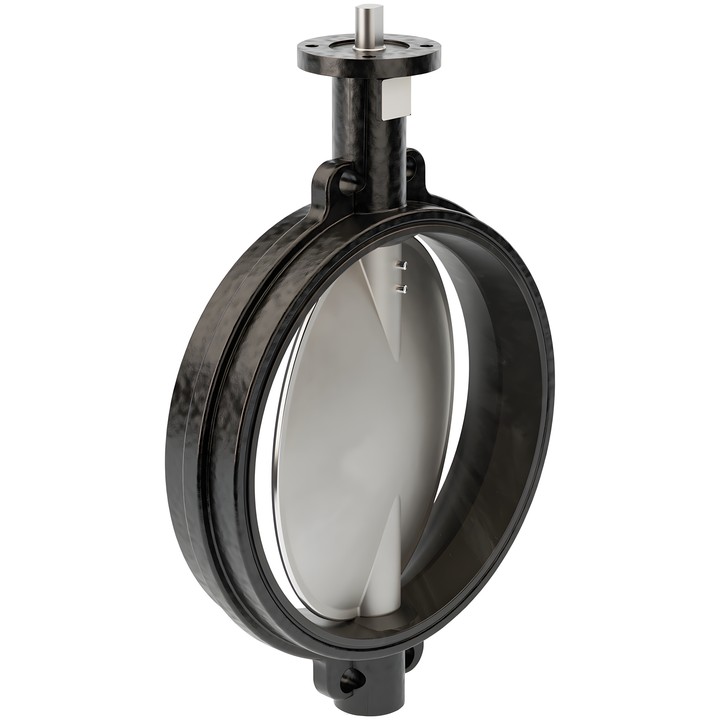

Belimo D6500N - 2-way butterfly valve DN 500

Name: Belimo D6500N - 2-way butterfly valve DN 500
Brand: Belimo
SKU: D6500N
Price: 26214.76 PLN
Availability: BackOrder

Belimo

zł26,214.76

VAT included

zł21,312.81 tax excluded

Belimo D6500N is a 2-way butterfly valve DN 500 with a PN 16 flanged connection. Kvs is 7060 m³/h and Kvmax is 24100 m³/h.

For water or water with max. 50% vol. glycol, at a fluid temperature of -20...120°C [-4...248°F].

Delivery in approx. 14 days

Belimo D6500N butterfly valve

2-way Wafer-type butterfly valve for open and closed water systems. Documentation indicates its use for switching heat sources or cooling equipment on and off.

Key features

Nominal diameter DN 500; PN 16 flanged connection.
Kvs: 7060 m³/h; Kvmax: 24100 m³/h.
Maximum differential pressure ∆pmax for DN 500: 300 kPa.
Fluid: water or water with max. 50% vol. glycol; fluid temperature: -20...120°C [-4...248°F].
Flow characteristic: 0...60% opening angle — equal percentage; 0...100% opening angle — S-shaped.
Leakage rate: class A (EN 12266-1); rotation angle: 90°.
Body: EN-GJS-400-18-LT (GGG 40.3); closing element: stainless steel AISI 304 (1.4301); seat: EPDM.

Permitted mounting position: from vertical to horizontal relative to the stem. Installation with the stem pointing downwards is not permitted.
