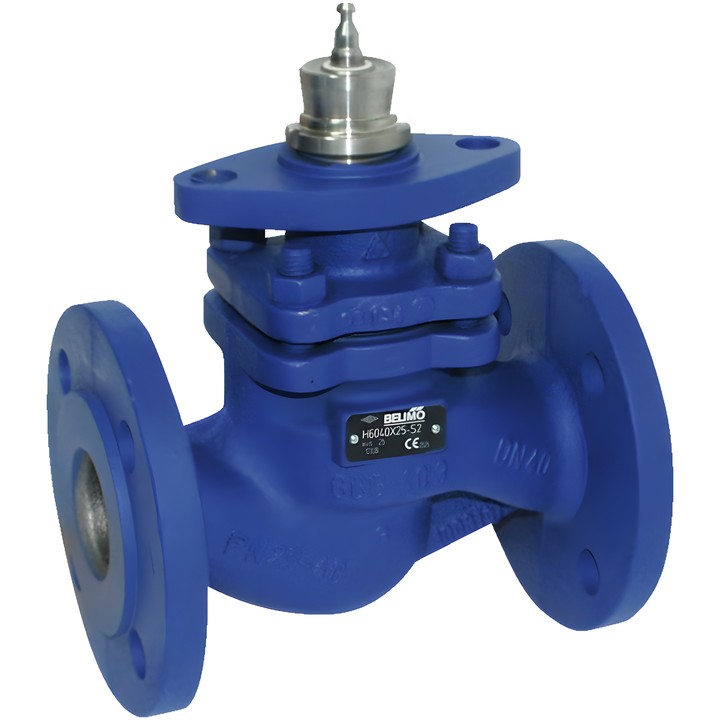

Belimo H6015X2P5-S2 - 2-way globe valve DN 15

Name: Belimo H6015X2P5-S2 - 2-way globe valve DN 15
Brand: Belimo
SKU: H6015X2P5-S2
Price: 2265.41 PLN
Availability: BackOrder

Belimo

zł2,265.41

VAT included

zł1,841.80 tax excluded

2-way Belimo H6015X2P5-S2 globe valve with flanged connection, DN 15, PN 25 and Kvs 2.5 m³/h. Designed for modulating control on the water side of ventilation and heating systems.

Medium temperature: 5...150°C [41...302°F]. Equal-percentage flow characteristic; permissible leakage: max. 0.05% of Kvs value.

Delivery in approx. 14 days

Belimo H6015X2P5-S2 globe valve

2-way globe valve with flanged connection for closed water and steam systems in non-critical applications. Designed for modulating control on the water side of ventilation and heating systems.

Key features

DN 15, PN 25, Kvs 2.5 m³/h; stroke 15 mm.
Medium: water and steam (Δp/P1 <0,4), water with up to 50% vol. glycol.
Medium temperature: 5...150°C [41...302°F]; 120°C up to 2500 kPa, 150°C up to 2430 kPa.
Flow characteristic: equal-percentage (VDI/VDE 2173), optimised in the opening range.
Permissible leakage: max. 0.05% of Kvs value.
Valve body: EN-GJS-400-18-LT (GGG 40.3), with protective coating. Closing element, stem and seat made of stainless steel; stem seal: PTFE V-ring.
Flanged connection according to ISO 7005-2. Permitted installation from vertical to horizontal in relation to the stem; installation with the stem pointing downwards is not permitted.

Observe the flow direction indicated by the arrow on the body. Maximum differential pressure and closing pressure depend on the installed globe valve actuator.
