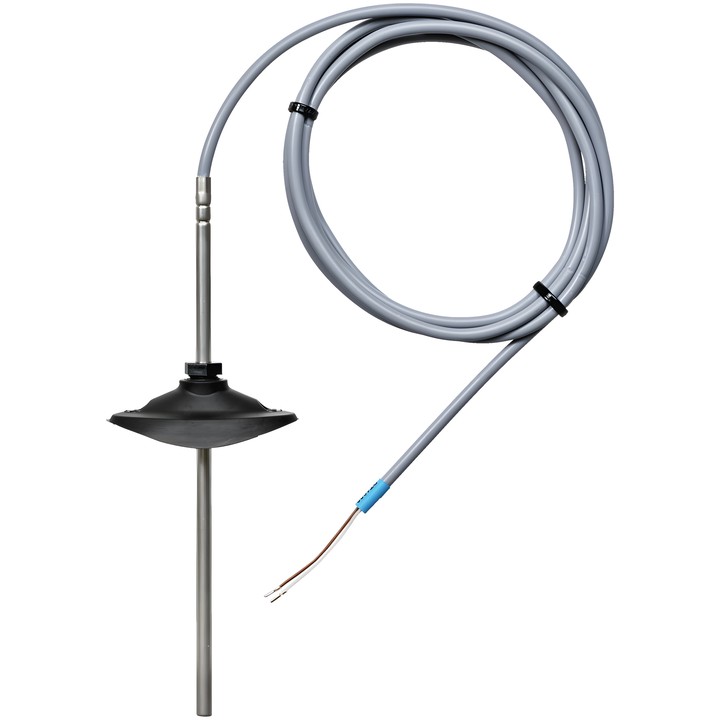

Belimo 01CT-1BLF - cable temperature sensor with mounting flange

Belimo 01CT-1BLF cable temperature sensor

Passive sensor for measuring temperature in air ducts, equipped with a stainless steel probe, PVC cable and mounting flange.

Key features

• Output signal: Pt1000.
• Probe length: 100 mm; probe diameter: 6 mm.
• Electrical connection: 2 m, 2-wire cable.
• Measuring range: -35...100°C [-30...210°F].
• Accuracy for Pt..: Class B, ±0.3°C @ 0°C [±0.5°F @ 32°F].
• Measuring current for Pt1000: <0.3 mA @ 0°C [32°F].
• Degree of protection: IP67 according to IEC/EN and NEMA 4X according to NEMA/UL.
• Mounting flange for 6 mm probe, type A-22D-A03, included.

For a passive 2-wire sensor, the supply current affects measurement accuracy due to self-heating. It should not exceed the measuring current specified in the technical data sheet.
