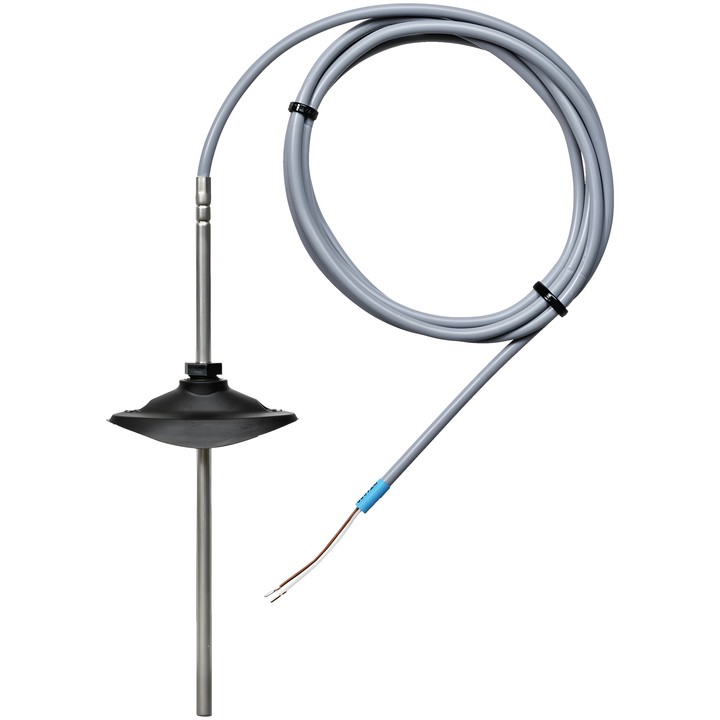

Belimo 01CT-1BPF - cable temperature sensor with mounting flange

Belimo 01CT-1BPF - cable temperature sensor with mounting flange

Belimo
zł92.84
VAT included
zł75.48 tax excluded

Passive temperature sensor for measuring air in ventilation ducts. Pt1000 output signal, 200 mm-long probe with a diameter of 6 mm.

Supplied with a 2 m, 2-wire cable and a mounting flange. Protection rating IP67 / NEMA 4X.

Delivery in approx. 14 days
Share

Belimo 01CT-1BPF cable temperature sensor

Passive sensor for measuring air temperature in ducts. It has a stainless steel probe, a PVC cable and a mounting flange.

Key technical data

  • Output signal: Pt1000.
  • Probe length: 200 mm; probe diameter: 6 mm.
  • Electrical connection: 2 m, 2-wire cable.
  • Measuring range: -35...100°C [-30...210°F].
  • Pt.. accuracy: class B, ±0.3°C @ 0°C [±0.5°F @ 32°F].
  • Pt1000 measuring current: <0.3 mA @ 0°C [32°F].
  • Protection rating: IP67 (IEC/EN), NEMA 4X (NEMA/UL).
  • Included: A-22D-A03 plastic mounting flange for a 6 mm probe, up to max. 120°C [248°F].

  • Brand
    Belimo
  • Reference
    01CT-1BPF
  • EAN13
    7630498117374

  • Electrical connection
    Cable
  • Measured values
    Temperature
  • Output signal
    Pt1000
  • Passive temperature sensor output
    Pt1000
  • Probe length
    200 mm

Techniczna karta katalogowa

Download (819.61KB)

Instrukcja montażu

Download (401.67KB)

Techniczna karta katalogowa – 01CT-1..F

Download (817.46KB)

Environmental Declaration – 01CT..

Download (71.67KB)
