Belimo NKQ24P-1 - rotary actuator for dampers

Belimo NKQ24P-1 - rotary actuator for dampers

Belimo
zł2,502.18
VAT included
zł2,034.29 tax excluded

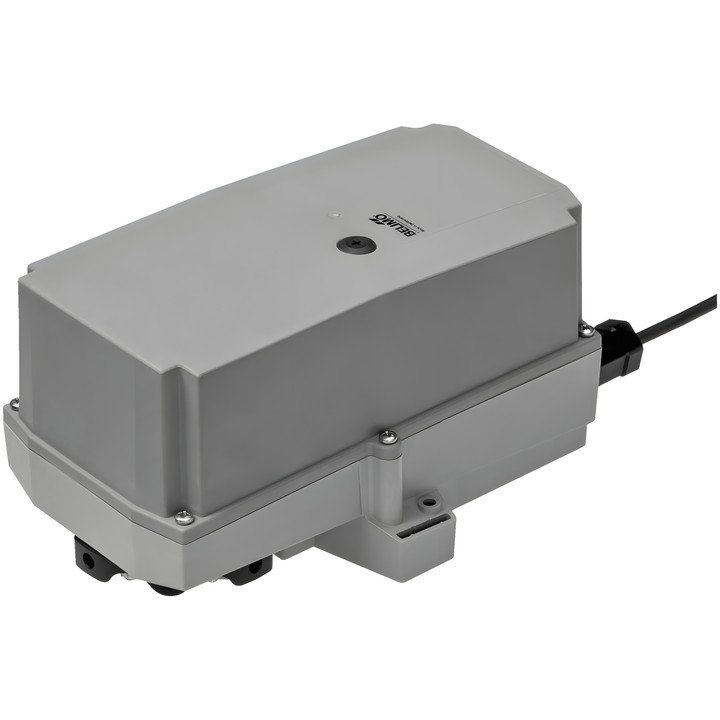

Belimo NKQ24P-1 rotary actuator with safety function for air dampers. Torque 6 Nm, AC/DC 24 V supply and Open/Close control. Motor running time and safety function running time are 4 s / 90°.

If the power supply fails, energy stored in the capacitors moves the actuator to the set safety position. Protection rating IP66/67.

Delivery in approx. 14 days
Share

Belimo NKQ24P-1 – rotary actuator with safety function

The RobustLine actuator is designed to position air dampers in building services systems. The integrated capacitors charge during operation; if the power supply is interrupted, the stored energy enables the actuator to return to the set safety position.

Key features and specifications

  • Torque: 6 Nm; control: Open/Close.
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Motor running time: 4 s / 90°; safety function running time: 4 s / 90°.
  • Safety position (POP): adjustable from 0...100% in 10% increments.
  • Motor direction of rotation: selected by switch 0 (counterclockwise) / 1 (clockwise).
  • Rotation angle: max. 95°; adjustable mechanical stops on both sides, minimum permitted angle 30°.
  • Manual override: push-button with lock; mechanical position indicator.
  • Mechanical connection: universal clamp 8...20 mm.
  • Power and control connection: 1 m cable, 3x 0.75 mm² (halogen-free).
  • Power consumption during operation: 11 W; at rest: 3 W; sizing power: 22 VA.
  • IEC/EN protection rating: IP66/67; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NKQ24P-1
  • EAN13
    7630498121197

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    11 W
  • Power consumption (holding)
    3 W
  • Rated power
    22 VA
  • Power supply control connection
    Cable 1 m, 3x 0.75 mm², FRNC (halogen-free)
  • Control type
    Close/Open
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    4 s / 90°
  • Running time (safety function)
    4 s
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    6 Nm
  • Direction of movement - motor
    Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 8...20 mm
  • Direction of rotation (safety function)
    Selectable via switch 0...100%

Techniczna karta katalogowa

Download (1.31MB)

Instrukcja montażu

Download (910.06KB)

EU Declaration of Conformity – NKQ24P-1

Download (32.76KB)

Environmental Declaration – NK..P..

Download (72.61KB)
