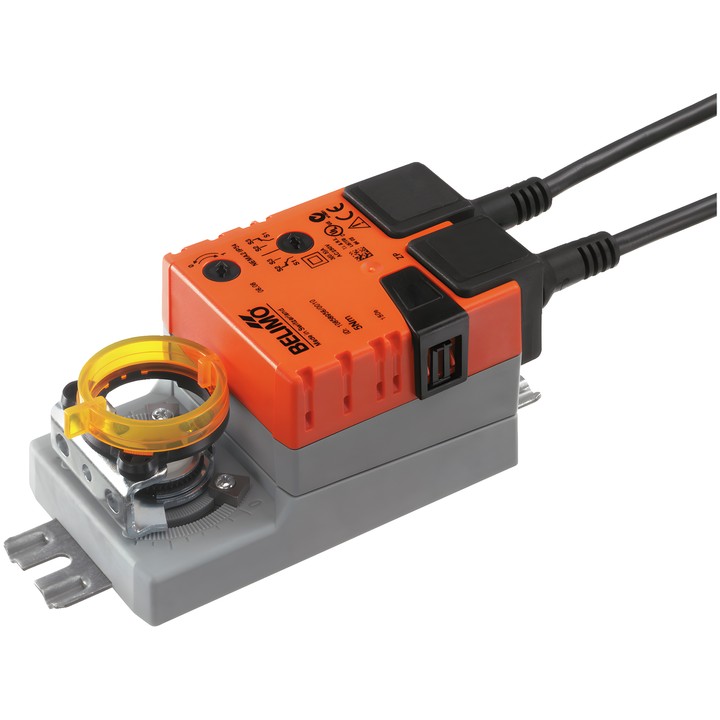

Belimo TMC230A-S-F - damper actuator

Name: Belimo TMC230A-S-F - damper actuator
Brand: Belimo
SKU: TMC230A-S-F
Price: 1060.26 PLN
Availability: OutOfStock

Belimo

zł1,060.26

VAT included

zł862.00 tax excluded

Belimo TMC230A-S-F damper actuator with a torque of 2 Nm and AC 100...240 V supply. Supports Close/Open and 3-point control; running time is 35 s / 90°.

Equipped with an integrated 1x SPDT auxiliary switch, an 8x8 mm mechanical connection and manual override by push-button with locking option.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo TMC230A-S-F damper actuator

Actuator designed for controlling dampers in technical building systems. According to the technical data sheet, it can operate air dampers with an area of up to approx. 0.4 m².

Key features

Torque: 2 Nm; nominal voltage: AC 100...240 V, 50/60 Hz.
Control: Close/Open, 3-point; motor running time: 35 s / 90°.
Integrated auxiliary switch: 1x SPDT, adjustable over a range of 0...100%.
Rotation angle: max. 95°, with the option of limiting both sides using mechanical stops.
Direction of rotation selected by switch: 0 (counterclockwise) / 1 (clockwise).
Manual override by push-button with locking option; mechanical position indicator.
Mechanical connection: form-fit connection, 8x8 mm.
Power and control connection and auxiliary switch connection: each with a 1 m cable, 3x 0.75 mm².
Power consumption while moving: 2 W; in the rest position: 0.5 W; sizing power for cable selection: 4 VA.
IEC/EN protection rating: IP54; IEC/EN protection class: II, double insulation; ambient temperature: -30...50°C [-22...122°F].

Brand

Belimo
Reference

TMC230A-S-F

AC/DC voltage

AC 100...240 V
Auxiliary switch connection

Cable 1 m, 3x 0.75 mm²
Power consumption (running)

2 W
Power consumption (holding)

0.5 W
Rated power

4 VA
Power supply control connection

Cable 1 m, 3x 0.75 mm²
Control type

Open/close, 3-point
Protection rating

IP54
NEMA protection rating

NEMA 2
Enclosure type

UL Enclosure Type 2
Manual override

Push-button, with locking option
Running time (motor)

35 s / 90°
Ambient temperature

-30...50°C [-22...122°F]
Auxiliary contacts

1x SPDT
Torque

2 Nm
Direction of movement - motor

Selectable via switch: 0 (rotation to the left) / 1 (rotation to the right)
Rotational angle

95°
Mechanical connection

Form-fit connection 8x8 mm
