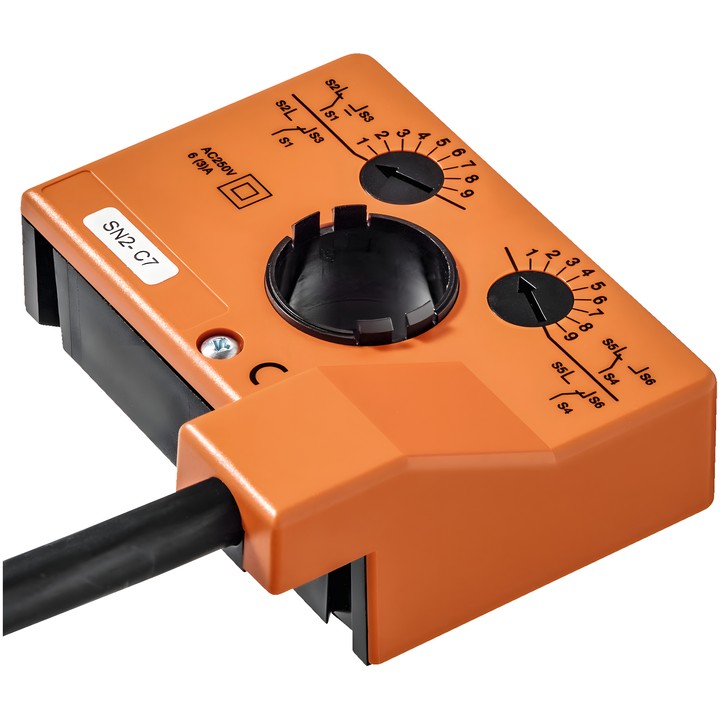

Belimo SN2-C7/300 - auxiliary switch for actuators

Belimo SN2-C7/300 - auxiliary switch for actuators

Belimo
zł731.85
VAT included
zł595.00 tax excluded

Belimo SN2-C7/300 auxiliary switch for damper actuators and rotary actuators. Equipped with 2x SPDT and switching points adjustable from 0...100% in 10% increments.

Connection: 3 m cable, 6x 0.75 mm², FRNC (halogen-free). Protection rating IP54.

Product unavailable
Share

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo SN2-C7/300 – auxiliary switch

The auxiliary switch signals the position or performs a switching function at a selected damper actuator or rotary actuator angle. Set the switching points using the adjustment dials; the current contact positions can be read.

Key features

  • Auxiliary contacts: 2x SPDT.
  • Switching points: adjustable from 0...100% in 10% increments.
  • Auxiliary contact rating: 6 A (3 A for inductive load), AC 250 V.
  • Connection: 3 m cable, 6x 0.75 mm², FRNC (halogen-free).
  • Protection rating: IP54.
  • Ambient temperature: -30...50°C [-22...122°F].
  • Weight: 0.41 kg.

Adjust the auxiliary switches only when the power supply is disconnected.

  • Brand
    Belimo
  • Reference
    SN2-C7/300
  • EAN13
    7630498114045

  • Auxiliary switch connection
    Cable 3 m, 6x 0.75 mm², FRNC (halogen-free)
  • Protection rating
    IP54
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Auxiliary contacts
    2x SPDT

Techniczna karta katalogowa

Download (1.76MB)

Instrukcja montażu

Download (282.66KB)

Techniczna karta katalogowa – SN2-C7/300

Download (1.76MB)
