Belimo NM24P-SR - actuator for dampers with analogue control

Belimo NM24P-SR - actuator for dampers with analogue control

Belimo
zł1,506.05
VAT included
zł1,224.43 tax excluded

RobustLine rotary actuator for dampers, with a torque of 10 Nm, AC/DC 24 V supply and 2...10 V control. The running time is 150 s / 90°, and the position feedback signal range is 2...10 V.

IEC/EN IP66/67 protection rating. The actuator is designed for HVAC installations; the documentation also indicates suitability for outdoor use and harsh environmental conditions.

Delivery in approx. 14 days
Share

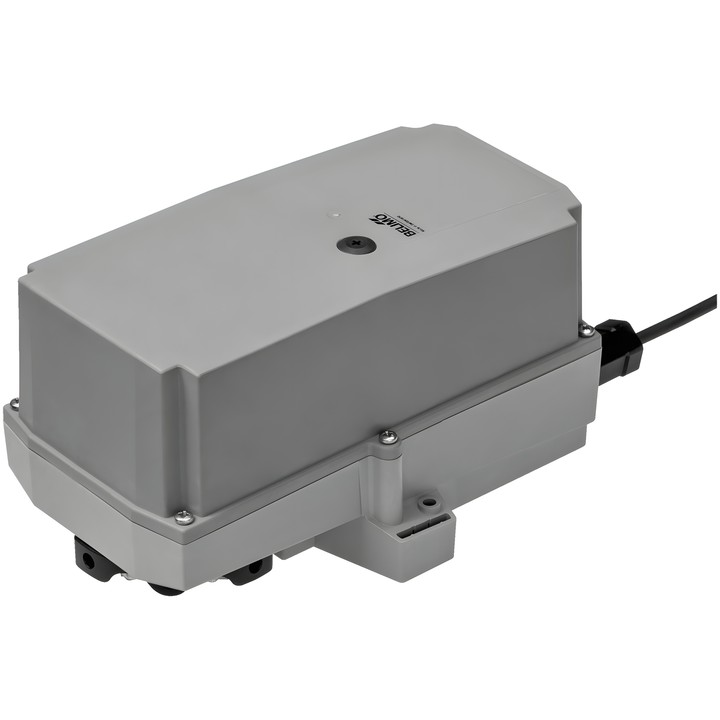

Belimo NM24P-SR – actuator for dampers

RobustLine rotary actuator with analogue control, designed to position dampers in HVAC installations. According to the documentation, it is particularly suitable for outdoor applications. The Y control signal sets the actuator position, while the U voltage enables electrical readout of the damper position.

Key features and specifications

  • Torque: 10 Nm; damper size: up to approx. 2 m².
  • Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
  • Modulating control: 2...10 V; position feedback signal: 2...10 V.
  • Motor running time: 150 s / 90°; rotation angle: max. 95°, limited by mechanical stops on both sides.
  • Power consumption during operation: 2 W; at rest: 0.4 W; sizing power for cable selection: 4 VA.
  • Direction of movement selected by a 0/1 switch; manual adjustment by push button with locking option.
  • Mounting on the damper shaft: universal clamp 10...20 mm; mechanical position indicator.
  • Connection: 1 m cable, 4x 0.75 mm², FRNC (halogen-free).
  • IEC/EN protection rating: IP66/67; IEC/EN protection class: III, Safety Extra-Low Voltage (SELV).
  • Ambient temperature: -30...50°C [-22...122°F].

  • Brand
    Belimo
  • Reference
    NM24P-SR
  • EAN13
    7630498113246

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    2 W
  • Power consumption (holding)
    0.4 W
  • Rated power
    4 VA
  • Power supply control connection
    1 m cable, 4x 0.75 mm², FRNC (halogen-free)
  • Control type
    DC 2...10 V
  • Protection rating
    IP66/67
  • NEMA protection rating
    NEMA 4X
  • Enclosure type
    UL Enclosure Type 4X
  • Manual override
    Push-button, with locking option
  • Running time (motor)
    150 s / 90°
  • Ambient temperature
    -30...50°C [-22...122°F]
  • Torque
    10 Nm
  • Direction of movement - motor
    Selectable via switch 0/1
  • Rotational angle
    95°
  • Mechanical connection
    Universal clamp 10...20 mm

Techniczna karta katalogowa

Download (932.54KB)

Instrukcja montażu

Download (552.43KB)

EU Declaration of Conformity – NM24P-SR

Download (50.48KB)

Environmental Declaration – NM..P..

Download (72.44KB)
