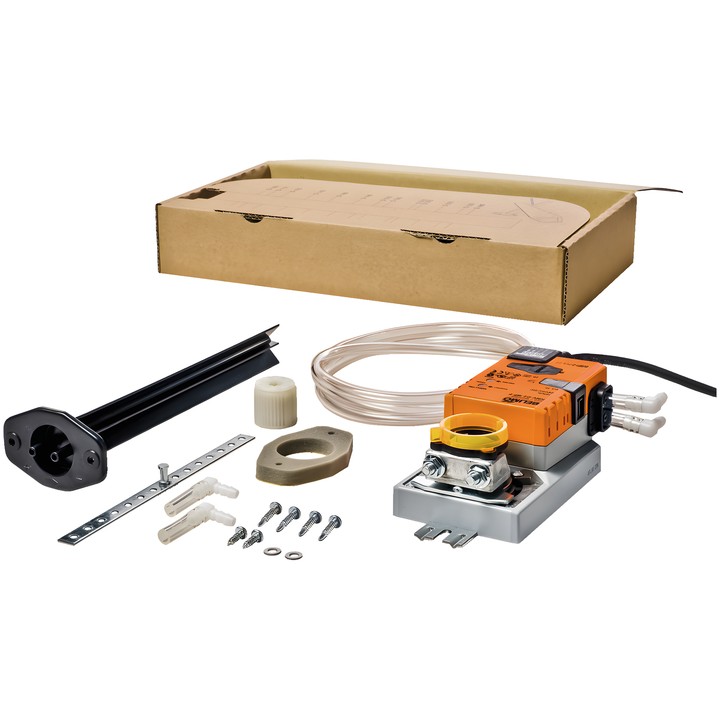

Belimo NMV-D3-RE2-SET - VAV-Compact controller retrofit kit

Belimo NMV-D3-RE2-SET - VAV-Compact controller retrofit kit

Belimo
zł1,716.13
VAT included
zł1,395.23 tax excluded

RetroFIT+ kit for upgrading the VAV-Compact NMV-D3-RE2, with a 10 Nm actuator and differential pressure sensor. AC/DC 24 V supply, 0/2...10 V modulating control and MP-Bus communication.

Delivery in approx. 14 days
Share

Belimo NMV-D3-RE2-SET

Retrofit kit (RetroFIT+) for the VAV-Compact NMV-D3-RE2. It combines a VAV controller, a dynamic differential pressure sensor and a damper actuator. The kit description specifies air flow velocities of 6 and 12 m/s and a 6 mm tube.

Key features

  • Actuator torque: 10 Nm.
  • Supply voltage: AC/DC 24 V; rated frequency: 50/60 Hz.
  • Bus and modulating control, 0/2...10 V; MP-Bus communication.
  • Differential pressure sensor and feedback signal for flow, position or differential pressure.
  • Power consumption during operation: 3 W; rated power: 5 VA.
  • Degree of protection IEC/EN: IP54.
  • NFC interface for commissioning, configuration and maintenance with the Belimo Assistant App.

An unlocking code for RetroFIT+ is required to configure the RetroFIT+ version.

  • Brand
    Belimo
  • Reference
    NMV-D3-RE2-SET
  • EAN13
    7630498113376

  • AC/DC voltage
    AC/DC 24 V
  • Power consumption (running)
    3 W
  • Rated power
    5 VA
  • Protection rating
    IP54
  • Torque
    10 Nm

Techniczna karta katalogowa

Download (3.09MB)

Instrukcja montażu

Download (3.31MB)

Techniczna karta katalogowa – NMV-D3-RE

Download (3.1MB)

EU Declaration of Conformity – NMV-D3-RE2-SET

Download (33.29KB)

Environmental Declaration – NMV..

Download (71.35KB)
