Belimo AVK24A-MP-RE - linear actuator for globe valves

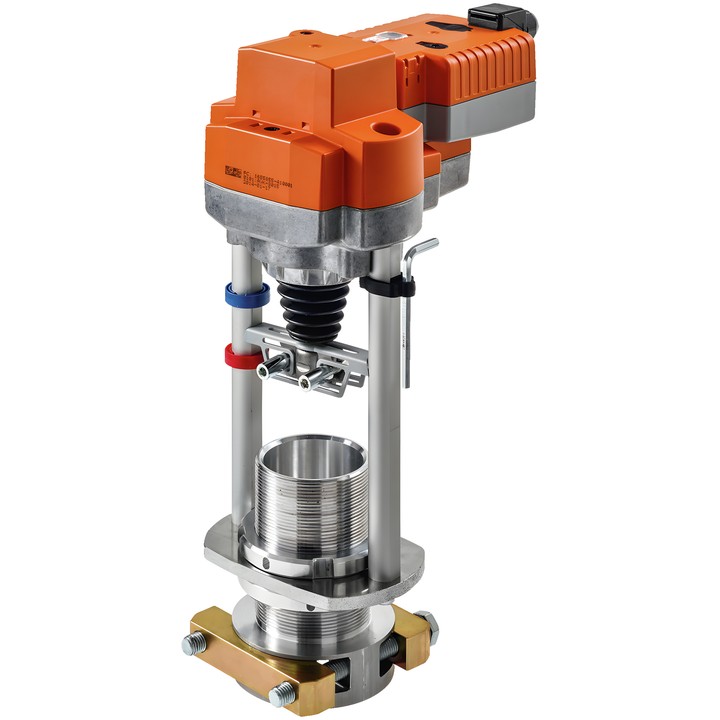

Belimo AVK24A-MP-RE actuator

Communicating RetroFIT+ linear actuator for 2- and 3-way globe valves. It can operate with an analogue control signal or receive digital commands via MP-Bus. If the power supply fails, it moves the valve to the selected fail-safe position using energy stored in the capacitors.

Key features and specifications

• Motor force: 2000 N; stroke: 32 mm.
• Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
• Power consumption: 5 W during operation and 2 W at rest; power for wire sizing: 9.5 VA.
• Modulating control: operating range Y 2...10 V; feedback signal U 2...10 V; MP-Bus communication.
• Motor running time: 150 s / 32 mm, adjustable to 90...150 s; fail-safe function running time: 35 s / 32 mm.
• POP fail-safe position adjustable within 0...100%; PF hold time factory-set to 2 s, adjustable within 0...10 s.
• Connected sensor signal can be converted for transmission via MP-Bus.
• Manual override using a push-button; power and control connection: 4 mm² terminals (cable ø4...10 mm).
• Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Safety Extra-Low Voltage (SELV).

The RetroFIT+ series is designed for installation on valves from various manufacturers using universal valve neck and stem adapters.
