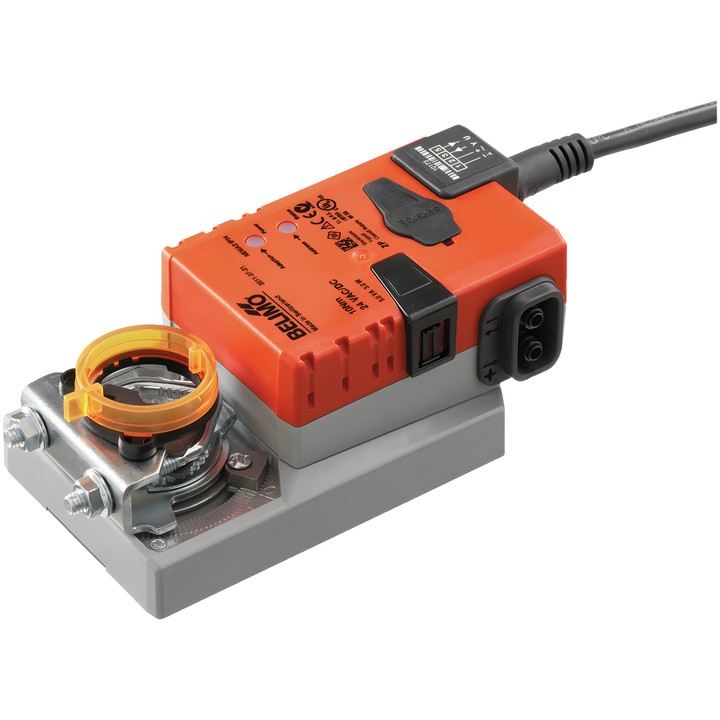

Belimo NMV-M1-MP - VAV-Compact flow controller

Name: Belimo NMV-M1-MP - VAV-Compact flow controller
Brand: Belimo
SKU: NMV-M1-MP
Price: 2421.87 PLN
Availability: OutOfStock

Belimo

zł2,421.87

VAT included

zł1,969.00 tax excluded

Belimo NMV-M1-MP is a VAV-Compact device with a VAV controller, a static differential pressure sensor Δp (membrane type) and an actuator for dampers with a torque of 10 Nm. It supports VAV/CAV control and position control.

AC/DC 24 V power supply, MP-Bus communication and 0/2...10 V modulating control. Differential pressure measuring range: 0...600 Pa.

Product unavailable

Notify me when available

Interested in this product? Drop us an email and we will let you know when it's available for order.

Belimo NMV-M1-MP – VAV-Compact device

The device combines a VAV controller, a static membrane-type Belimo M1 differential pressure sensor and a damper actuator. It is designed for VAV units in comfort zones and ventilation systems with polluted air. It supports VAV/CAV flow control and position control.

Key features and specifications

Torque: 10 Nm; rotation angle: 95°.
Rated voltage: AC/DC 24 V; frequency: 50/60 Hz.
MP-Bus communication; 0/2...10 V modulating control.
Operating range Y: 2...10 V; adjustable range Y: 0...10 V; position feedback signal U: 2...10 V.
Differential pressure measuring range: 0...600 Pa; maximum system pressure: 1500 Pa.
Power consumption during operation: 3 W; at rest: 1.5 W; sizing power: 5 VA.
Mechanical connection: universal clamp 8...26.7 mm; power and control connection: 1 m cable, 4x 0.75 mm².
Manual adjustment by push-button, with lock option; mechanical position indicator.
Service socket and NFC interface; device parameters can be modified using Belimo Assistant 2.
Degree of protection IEC/EN: IP54; protection class IEC/EN: III, Protective Extra-Low Voltage (PELV).
Ambient temperature: 0...50°C [32...122°F].
